Construction & Mining Equipments

Magnetic Speed Sensor

3/4 " 16UNF Threads Magnetic pickups types

Twintech Part No. : TCUMPU7092
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU5417
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU4141
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU2304
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU4010
Threading : 3/4 " 16UNF
Threading Lenght : 114.0mm
Probe Connector : Wires Leads
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU9524
Threading : 3/4 " 16UNF
Threading Lenght : 83.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU9525
Threading : 3/4 " 16UNF
Threading Lenght : 127.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

twintechcontrols

Twintech Part No. : TCUMPU3007
Threading : 3/4 " 16UNF
Threading Lenght : 45.0mm
Probe Connector : 2 Core Shielded + 3 way power lock connector
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Digital Hourmeter

Twintech Part No. : TDHM3700
Supply : 9-60 V. DC
Input : 12-24 V. DC
Display : LCD Display 6 digits with Backelight
IP : 65
Operating Temperature : -30 to 80 °C
Cut-out Size in mm : 52.0mm Diameter

Send Request MOQ : 30 nos

twintechcontrols

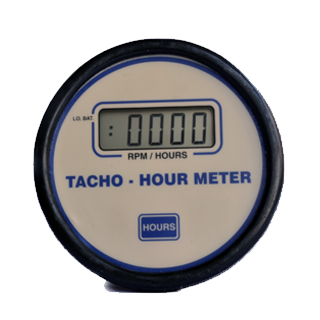

Types of Digital Tachohour Meter

Digital Tachohour meter with Inbuilt Battery

Twintech Part No. :
Part Name : Digital Tachohour meter with Inbuilt Battery
Supply : N.A
Input : Magnetic pickup / Hall effect / Proximity
Display : Single 4 & 1/2 LCD Display
Range : 0 to 9999 RPM
Hours : Press Button for Hours Showing
Teeth Gear Calibration : N.A
Connection : 2 Studs
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Battery Life : One Year Only

Send Request MOQ : 06 nos

twintechcontrols

Digital Twin Tachohourmeter Bluetooth Enable

Twintech Part No. :
Part name : Digital Twin Tachohourmeter Bluetooth Enable
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Dual Display 4 Digit LCD & 6 Ligit LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Hours : Seperate Display for Hours
Teeth Gear Calibration : Using Mobile App
Connection : 4 Studs
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A

Send Request MOQ : 06 nos

twintechcontrols

CAT Tachohour Meter

Twintech Part No. :
Twintech Part Name : CAT Tachohour Meter
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Single 4 & 1/2 LCD Display
Range : 0 to 9999 RPM
Hours : N.A
Teeth Gear Calibration : Specific Teeth Set by backside switches
Connection : 9 Pin Connectors
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : Factory set

Send Request MOQ : 06 nos

twintechcontrols
