INTRODUCTION

Twintech Control Systems Pvt. Ltd. has established a strong reputation and nationwide presence in India's Power Sector & Turbines sector. The company specializes in designing and manufacturing electronic products tailored for these industries, including:

- Magnetic Speed Sensors , Digital Tachohour Meters , Digital Hourmeter, Digital RPM Indicators These devices are crucial for monitoring engine speed and operational hours, contributing to effective equipment management.

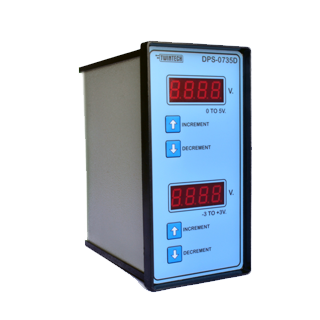

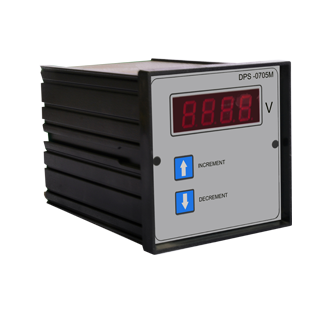

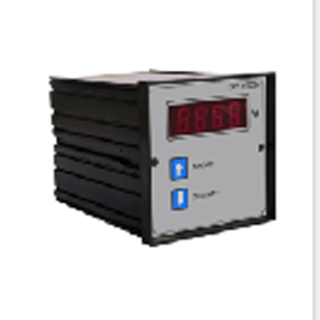

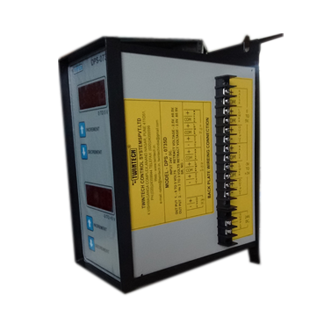

- Digital Solid State Potentiometers : A digital solid-state potentiometer (DSSP) is an advanced electronic component used in various industrial applications, including Diesel Generator (DG) synchronizing panels. It replaces traditional mechanical potentiometers with solid-state technology, offering higher reliability, precision, and automation capabilities

With a robust network of over 100 dealers across India, Twintech ensures widespread distribution and support for its products. Their commitment to innovation and quality has solidified their standing in the power sector & turbine industry.

Magnetic Speed Sensors (Magnetic Pickups)

Types of 5/8-18 UNF Magnetic Speed Sensors

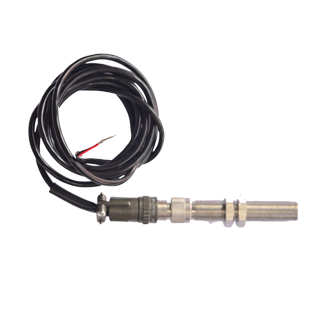

Twintech Part No. : TCUMPU1404
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

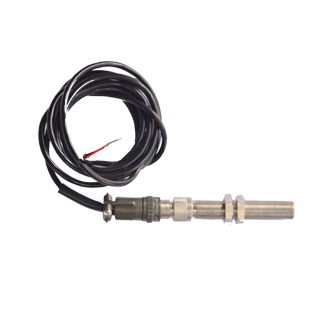

Twintech Part No. : TCUMPU3272
Threading : 5/8 " 18UNF
Threading length : 80.0mm
Probe Connector : Same as expect to Matting Millatry style Connector
Cable Length : N.A
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

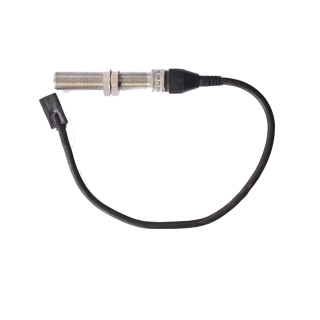

Twintech Part No. : TCUMPU5360
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4838
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

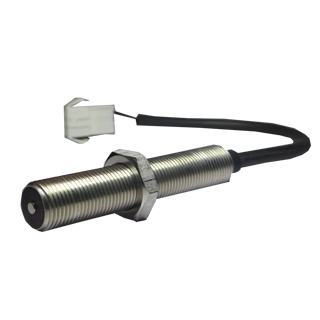

Twintech Part No. : TCUMPU4572
Threading : 5/8 " 18UNF
Threading length : 83.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

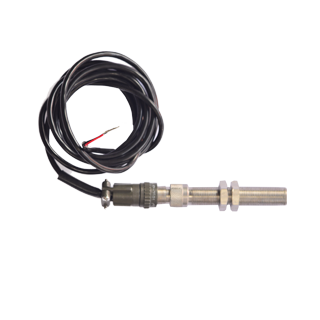

Twintech Part No. : TCUMPU5824
Threading : 5/8 " 18UNF
Threading length : 80.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

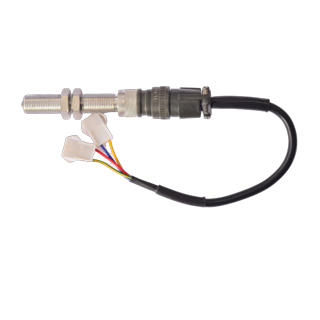

Twintech Part No. : TCUMPU5447
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

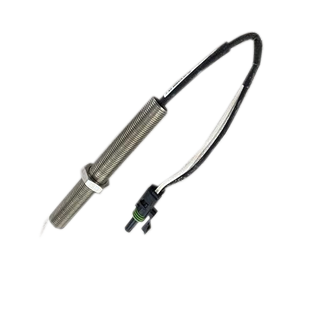

Twintech Part No. : TCUMPU4573
Threading : 5/8 " 18UNF
Threading length : 127.0mm
Probe Connector : Teflon wires leads + Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

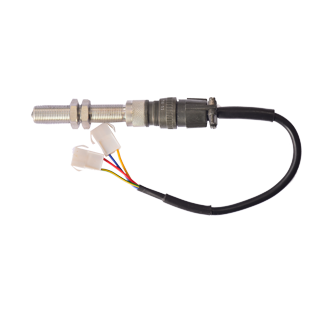

Twintech Part No. : TCUMPU1360
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 3300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUHRN3273
Threading : 5/8 " 18UNF
Threading length : N.A
Probe Connector : Moulded Harness with 2 way Male Pins
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : N.A

Send Request MOQ : 30 nos

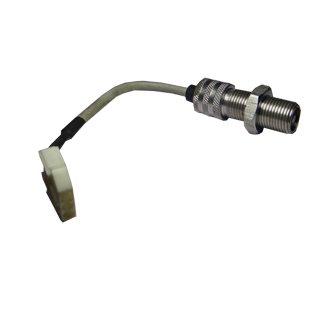

Twintech Part No. : TCUMPU2915
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

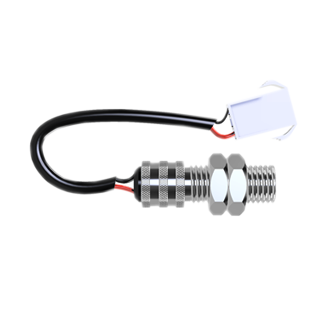

Twintech Part No. : TGRMPU0793
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

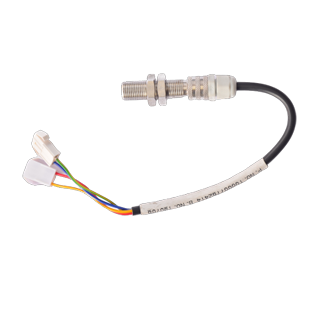

Twintech Part No. : TGRMPU2414
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : 4 Core Wires Leads + 3 way Power lock connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0796
Threading : 5/8 " 18UNF
Threading length : 51.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0799
Threading : 5/8 " 18UNF
Threading length : 55.0mm
Probe Connector : Wires Leads + 2 way TT Make Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

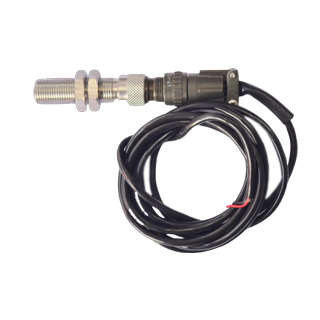

Twintech Part No. : TGRMPU0001
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU2754
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 3.5 Meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Types of 3/4 ” 16UNF Magnetic Speed Sensors

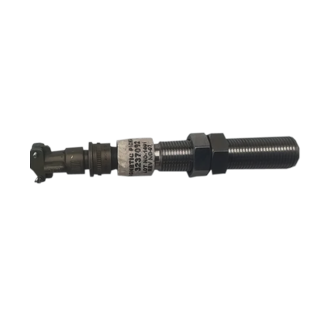

Twintech Part No. : TCUMPU7092
Threading : 3/4 " 16UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

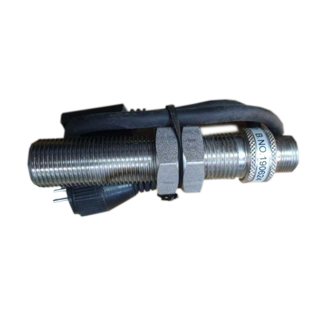

Twintech Part No. : TCUMPU5417
Threading : 3/4 " 16UNF
Threading length : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

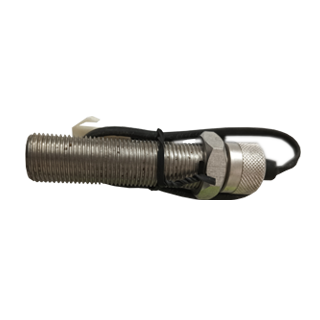

Twintech Part No. : TCUMPU4141
Threading : 3/4 " 16UNF
Threading length : 76.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU2304
Threading : 3/4 " 16UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

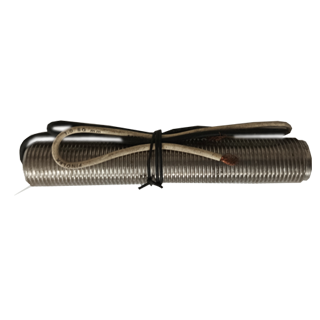

Twintech Part No. : TCUMPU4010
Threading : 3/4 " 16UNF
Threading length : 114.0mm
Probe Connector : Wires Leads
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

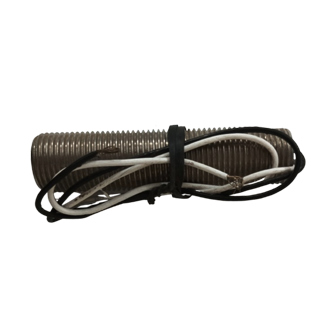

Twintech Part No. : TCUMPU9524
Threading : 3/4 " 16UNF
Threading length : 83.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

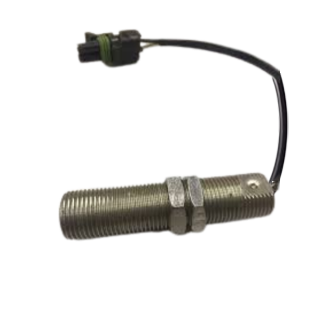

Twintech Part No. : TCUMPU9525
Threading : 3/4 " 16UNF
Threading length : 127.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC

Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU3007
Threading : 3/4 " 16UNF
Threading length : 45.0mm
Probe Connector : 2 Core Shielded + 3 way power lock connector
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Types of Types of M12 Magnetic Speed Sensors

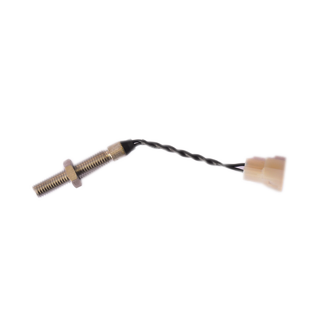

Twintech Part No. : TSEMPU1198
Threading : M12 X 1.75
Threading length : 60.0mm
Probe Connector : Wires leads + 2 pole connector 210 series
Cable Length : 85.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Types of M16 Magnetic Speed Sensors

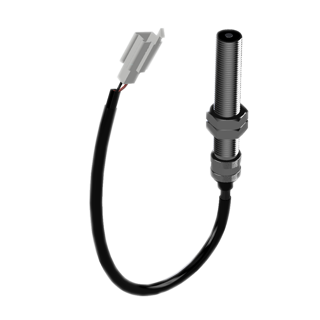

Twintech Part No. : TKMPU28
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

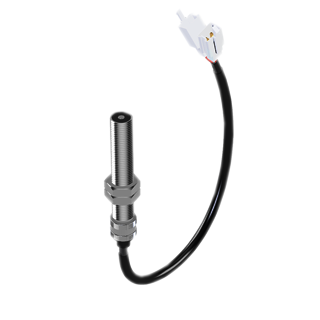

Twintech Part No. : TKDMPU29
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKMPU31
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 Pole Amp Make connector Male
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms>

Send Request MOQ : 30 nos

Types of 3/8" 24 UNF Magnetic Speed Sensors

Ax1006112	Threading 3/8", 24 UNF	Length: 52 mm	Lock Nuts: 2 of 14.1 A/F hex, 5.0 mm thick	Cable: 14/36 2 core, 300 mm with female power mate connector	Cable: 2 mtrs, same cable with male power mate connector	Flying leads at other ends	Coil Resistance: 300±60 ohms
24U380101	Threading 3/8" 24 UNF	Length: 60 mm	Knurling: 10 mm	Lock Nuts: 2 of 14 mm A/F, 5 mm thick	Plastic LED holder grommet	Cable: 200 mm, 0.75 sq.mm, tef/tef	Wires: White with flying leads	Coil Resistance: 1000±50 Ohms
24U38-1070012	Threading 3/8" 24 UNF	Length: 50 mm	Lock Nuts: 2 of 15 mm A/F, 5 mm thick	Grommet: Plastic LED holder	Cable: 1 meter, tef/tef	Shielded: 2 core, other end flying leads	Coil Resistance: 350±50 Ohms
24U38107001	Threading 3/8" 24 UNF	Length: 57 mm	Lock Nut: 1 of 14 mm A/F, 6 mm thick	Kurling: 10 mm	Cable: 72" Teflon Jacketed, 2 core	Flying Leads: Yes	Coil Resistance: 325 Ohms

Request a Quote Application

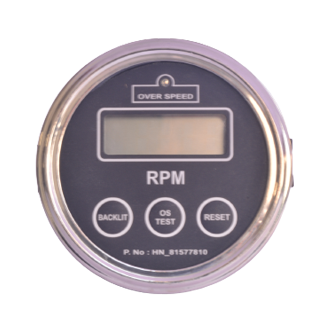

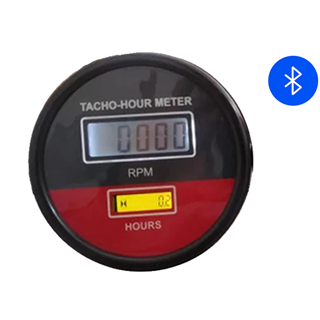

Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication

Twintech Part No. :
Part Name : Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Dual Display 4 Digit LCD & 6 Ligit LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Hours : Seperate Display for Hours
Teeth Gear Calibration : Using Mobile App
Connection : 9 Pin Connectors
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : Set by Mobile App

Send Request MOQ : 06 nos

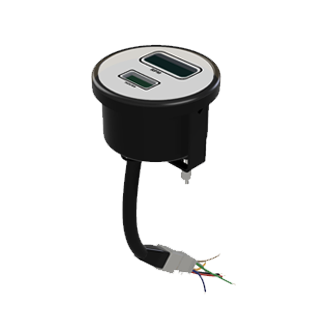

Digital Twin Tachohourmeter Bluetooth Enable

Twintech Part No. :
Part name : Digital Twin Tachohourmeter Bluetooth Enable
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Dual Display 4 Digit LCD & 6 Ligit LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Hours : Seperate Display for Hours
Teeth Gear Calibration : Using Mobile App
Connection : 4 Studs
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A

Send Request MOQ : 06 nos

CAT Tachohour Meters

Twintech Part No. :
Twintech Part Name : CAT Tachohour Meters
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Single 4 & 1/2 LCD Display
Range : 0 to 9999 RPM
Hours : N.A
Teeth Gear Calibration : Specific Teeth Set by backside switches
Connection : 9 Pin Connectors
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : Factory set

Send Request MOQ : 06 nos

Types of Digital RPM Indicators

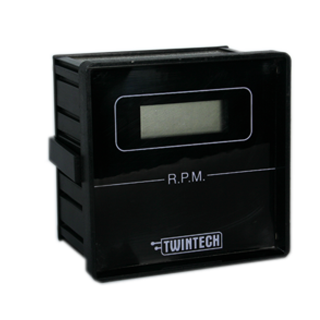

Digital RPM Indicators LCD Display

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators LCD Display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : 4 Digits LCD Display
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set @ 118 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Size in mm : 96 X 96 X 50
Cut out : 92 X 92

Send Request MOQ : 06 nos

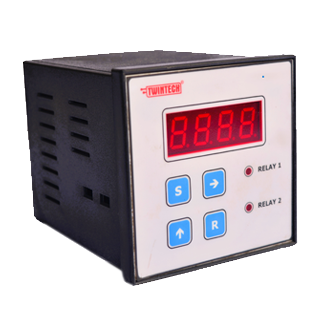

Digital RPM Indicators Programmable

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators Programmable
Supply : 12-32 VDC / 230V AC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : 4 to 20mA / 0 to 10V
Teeth Gear Calibration : Set Through Front Switches
Connection : Terminals on back sides
Hours : N.A
Mounting Clamp : 2 side Clamps

Overspeed / Relay Output : upto 3 Relay outputs with LED Indication on Front side
Size in mm : 96 X 96 X 125
Cut out : 92 X 92

Send Request MOQ : 06 nos

Types of Digital Solid State Potentiometers

DPS – 0 to 5V / Customized

Twintech Part No. : TCUDPS-05
Supply : 12 - 32 VDC
Ouput : 0 to 5V DC / Customized
Display : RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 96 X 125
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

DPS – 3 to +3V / Customized

Twintech Part No. : TCUDPS-03
Supply : 12 - 32 VDC
Ouput : -3 to +3 VDC / Customized
Display : RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 96 X 125
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

Dual Output DPS – 0 to 5 and -3 to +3V DC / Customized

Twintech Part No. : TCUDDPS-53
Supply : 12 - 32 VDC
Ouput : 0 to 5VDC & -3 to +3 VDC / Customized
Display : 2 Seperates RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 229 X 150
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

Power Sector, Turbines

Products Index

Magnetic Speed Sensors (Magnetic Pickups)

Types of 5/8-18 UNF Magnetic Speed Sensors

Types of 3/4 ” 16UNF Magnetic Speed Sensors

Types of Types of M12 Magnetic Speed Sensors

Types of M16 Magnetic Speed Sensors

Types of 3/8" 24 UNF Magnetic Speed Sensors

Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication

Digital Twin Tachohourmeter Bluetooth Enable

CAT Tachohour Meters

Types of Digital RPM Indicators

Digital RPM Indicators LCD Display

Digital RPM Indicators Programmable

Types of Digital Solid State Potentiometers

DPS – 0 to 5V / Customized

DPS – 3 to +3V / Customized

Dual Output DPS – 0 to 5 and -3 to +3V DC / Customized
