INTRODUCTION
In India many OEM companies for there machine manufacturing, were using imported magnetic speed sensor. These OEMS ask Twintech to develope the same part as an Indigenisation Parts, Twintech Develop 7 types of Magnetic Speed sensor as a Indigenisation parts. Now we also export the same
Magnetic pickup speed sensors, also known as magnetic proximity sensors, are commonly used in various applications to detect the rotational speed of machinery, such as engines, turbines, and conveyor belts. These sensors utilize the principle of magnetic induction to detect the presence of ferrous metal targets, such as gear teeth, bolts, or other metallic components attached to the rotating shaft.
Key Features :

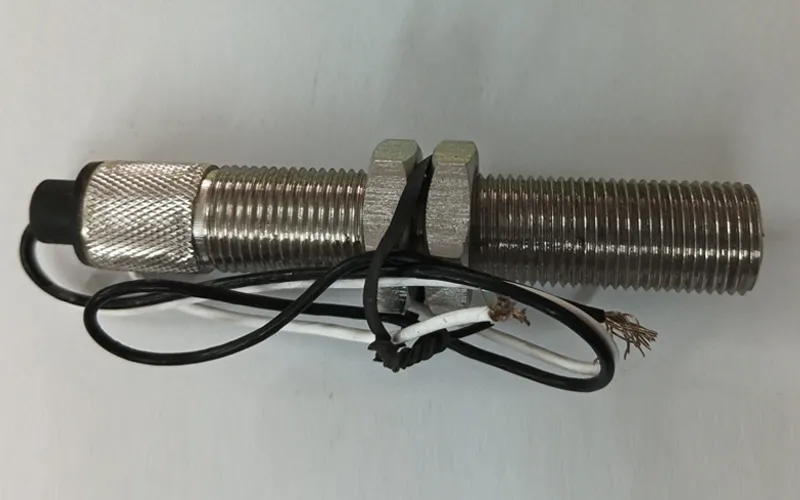

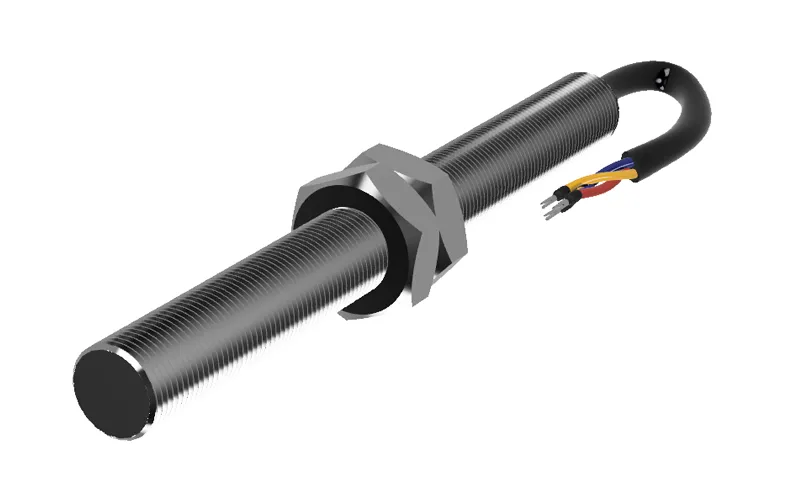

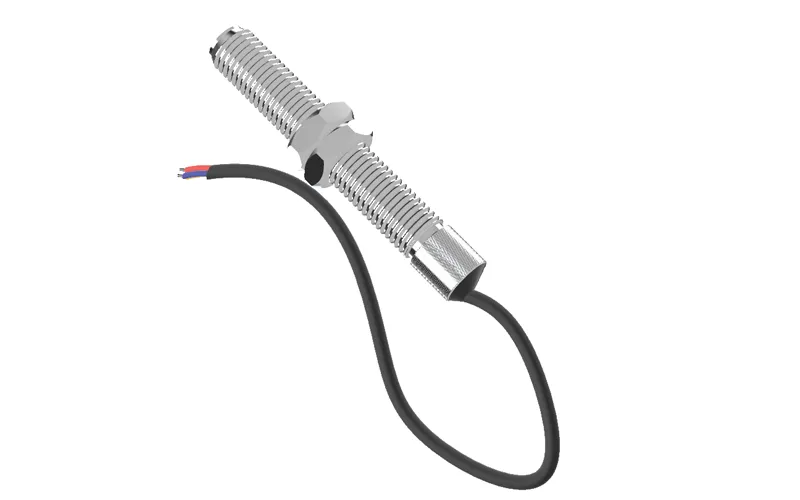

| J. Aman MPU Speed Sensor |
| Produces electrical frequency |
| Export in Malaysia |
| Sector Turbines |
| Material SS304 Non Magnetic |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| High Temperature Proof Wires |
| Twintech Part No. | |
| Part Name | J. Aman MPU Speed Sensor |
| Threading | 5/8 " 18UNF |
| Threading Lenght | 76.0mm |
| Probe Connector | Teflon wires White / Black 1 Sq mm |
| Cable Length | 300mm |
| Operating Temperature | 800 to 1.5 K ohms |
Key Features :

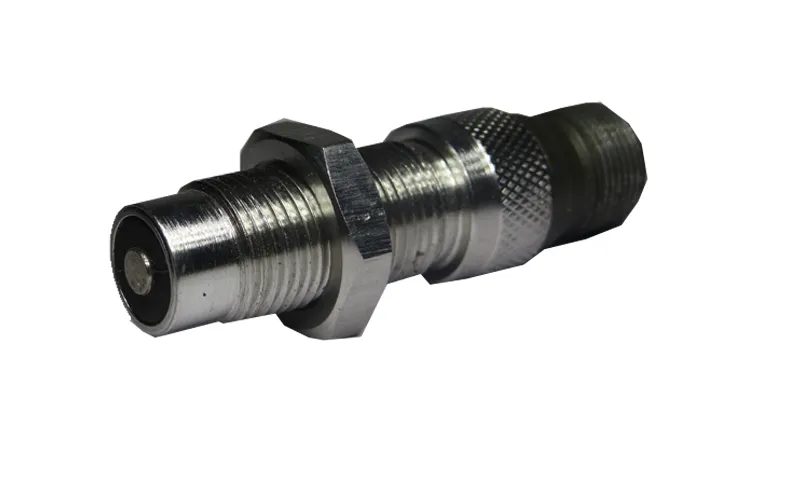

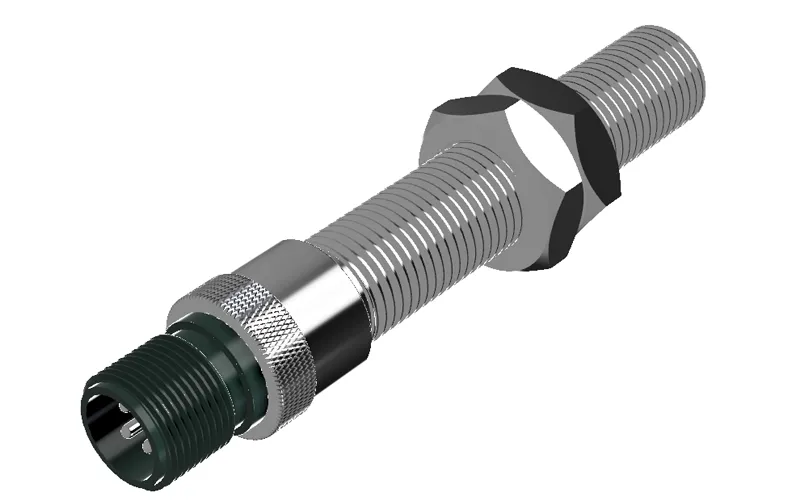

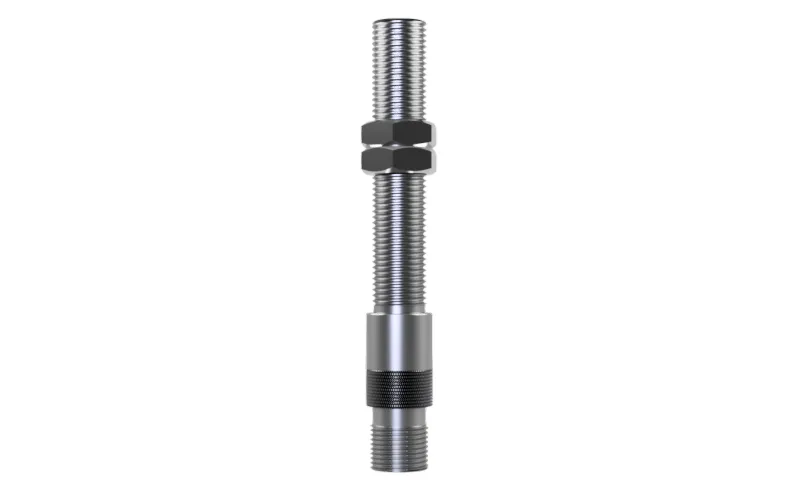

| WW GER MPU Speed Sensor |
| Produces electrical frequency |
| Sector Turbines |
| Millatery Standard Connector |
| Rugged Application |
| Material SS304 Non Magnetic |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| Upto 100 Degree Temperature |
| Country of Origin: Make In India |
| Twintech Part No. | |
| Part Name | WW GER MPU Speed Sensor |
| Threading | 5/8 " 18UNF |
| Threading Lenght | 50 mm / 76 mm / 114.0 mm |
| Probe Connector | 2 Pin Male Millatery Style connector |
| Cable Length | 2 Meters long with Female Connector |
| Operating Temperature | -40 ºC to +106 ºC |
| Coil Resistance | 800 to 1.5 K ohms |
Key Features :

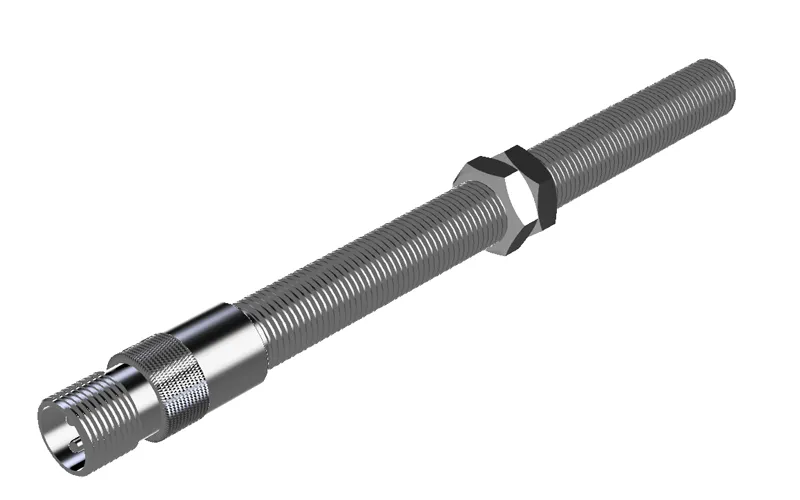

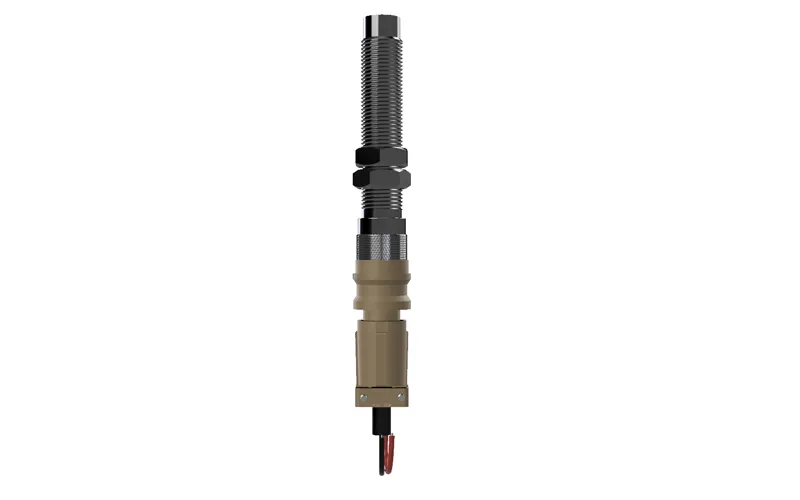

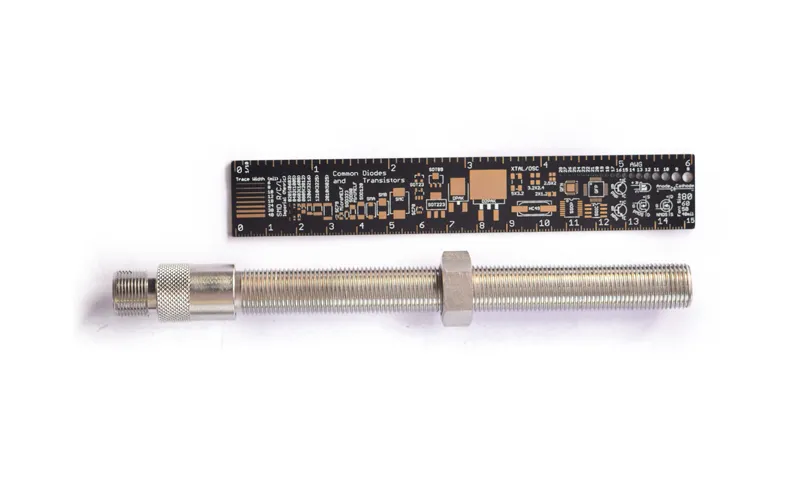

| Altra USA MPU Speed Sensor |
| Produces electrical frequency |
| Sector Turbines and Marine |
| Mating Connector to Millatery Standard Connector |
| Rugged Application |
| Material SS304 Non Magnetic |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| Upto 100 Degree Temperature |
| Country of Origin: Make In India |
| Twintech Part No. | |
| Part Name | Altra USA MPU Speed Sensor |
| Threading | 5/8 " 18UNF |
| Threading Lenght | 50 mm / 76 mm / 114.0 mm / 152.0 mm |
| Probe Connector | 2 Pin Male Assembly as mating to Milatery style connector |
| Cable Length | 2 Meters long with Female Milatery Style Connector |
| Operating Temperature | -40 ºC to +106 ºC |
| Coil Resistance | 800 to 1.5 K ohms |

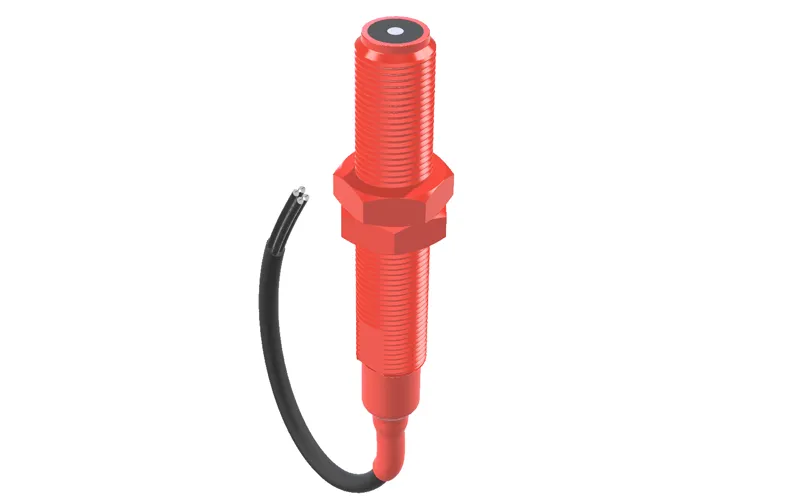

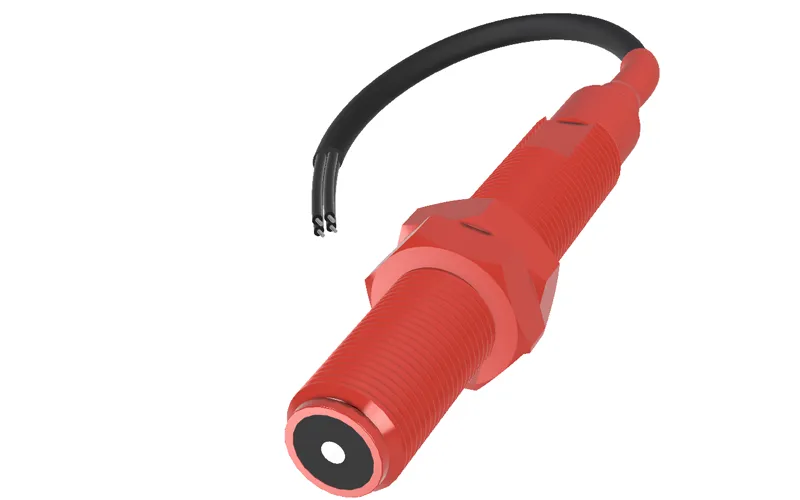

Key Features :

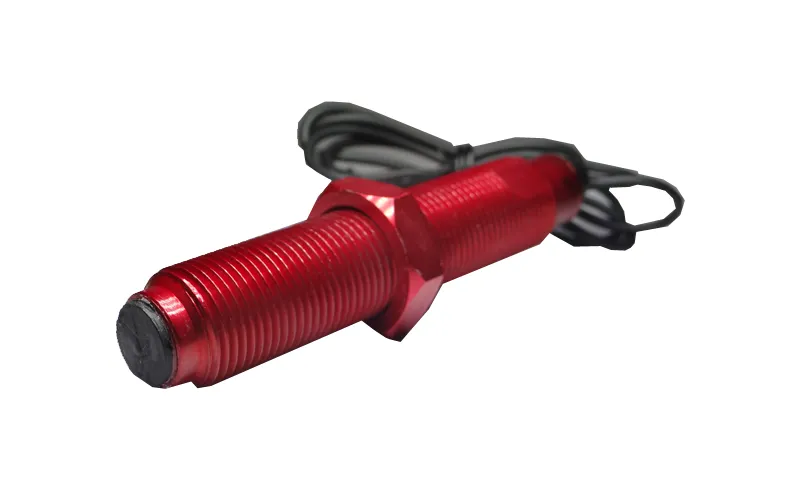

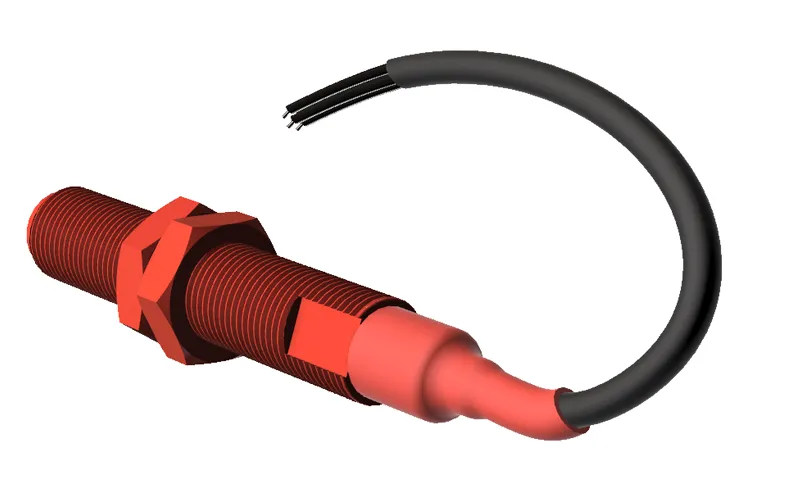

| Chromi CA DOMPU Speed Sensor |
| Export in Canada |
| Sector Turbines & Marine |
| Material : Anodized Aluminium |
| Produces electrical frequency |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| Upto 100 Degree Temperature |
| Twintech Part No. | |
| Part Name | Chromi CA DOMPU Speed Sensor |
| Threading | 3/4 " 16UNF |
| Threading Lenght | 90.0mm |
| Probe Connector | 1 Sqmm Black Wires |
| Cable Length | 600mm |
| Operating Temperature | -40 ºC to +106 ºC |
| Coil Resistance | 800 to 1.5 K ohms |
| Output Type | Dual Output |
Key Features :

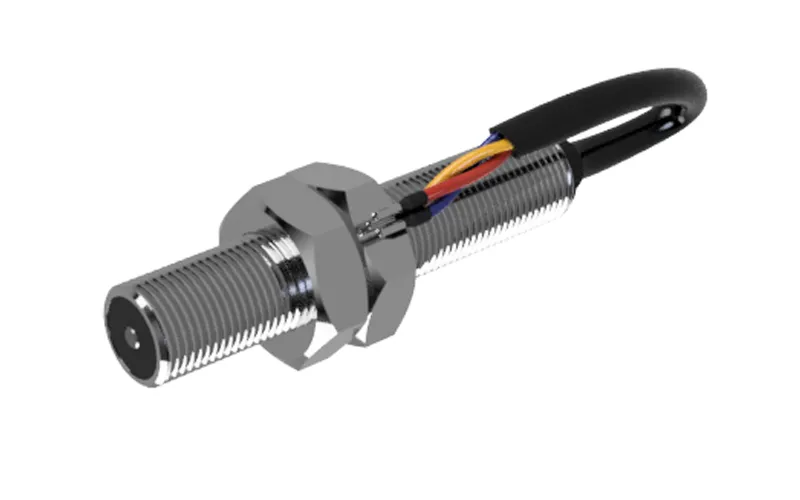

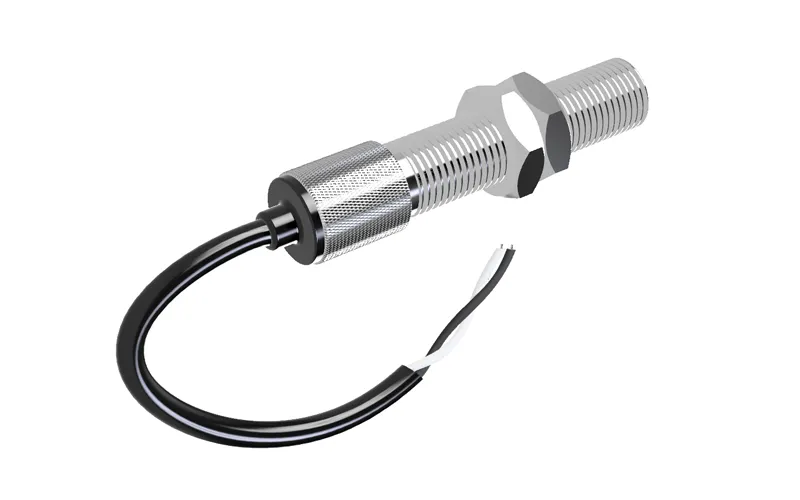

| GA 3/8" MPU Speed Sensor |
| Export Quality |
| Sector Turbines & Marine |
| Material SS304 Non Magnetic |
| Produces electrical frequency |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| High Temperature Proof Wires |
| Available for hazardous location installation (not certified) |
| Country of Origin: Make In India |
| Twintech Part No. | |
| Part Name | GA 3/8" MPU Speed Sensor |
| Threading | 3/8 " 24UNF |
| Threading Lenght | 70.0mm |
| Probe Connector | Teflon wires 2 core shielded |
| Cable Length | 1.8 Meters |
| Operating Temperature | -40 ºC to +106 ºC |
| Coil Resistance | 800 to 1.5 K ohms |
Key Features :

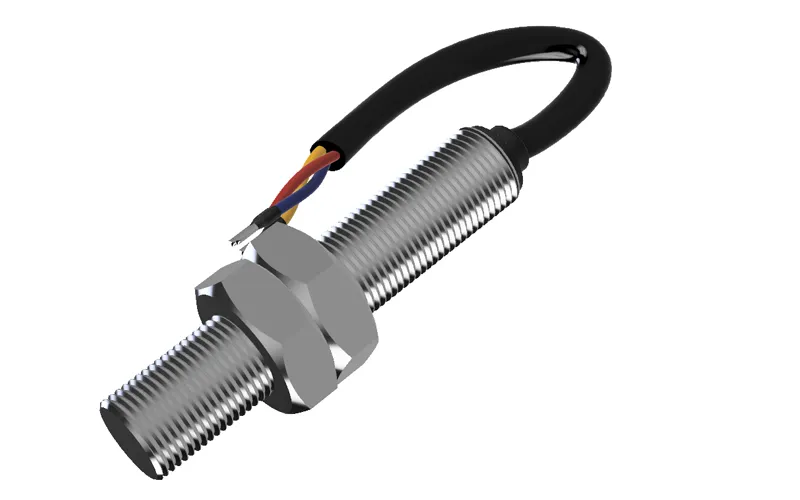

| JAKTE Hall Speed Sensor |
| Export Quality |
| Sector Automotive |
| Material SS304 Non Magnetic |
| Produces electrical frequency |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| High Temperature Proof Wires |
| Available for hazardous location installation (not certified) |
| Country of Origin: Make In India |
| Twintech Part No. | |
| Part Name | JAKTE Hall Speed Sensor |
| Threading | M12 X 1.0 |
| Threading Lenght | 60 /100 /120 |
| Probe Connector | Teflon wires 2 core shielded |
| Cable Length | 1.0 Meters |
| Operating Temperature | -40 ºC to +106 ºC |
| Coil Resistance | 800 to 1.5 K ohms |
Key Features :

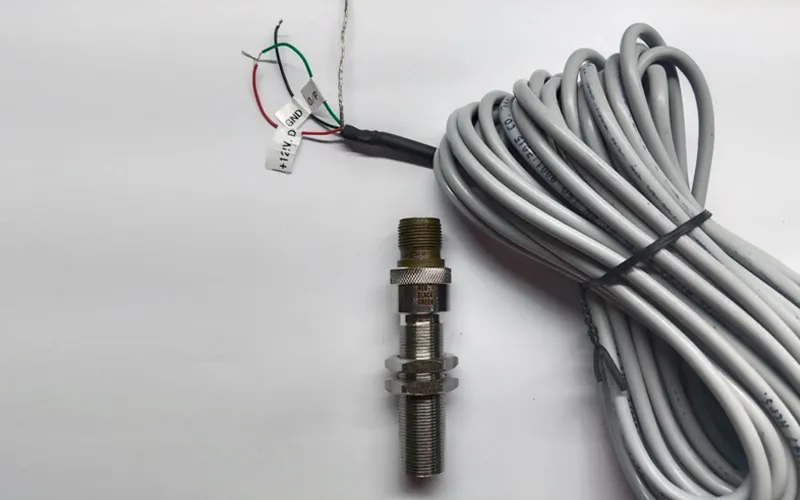

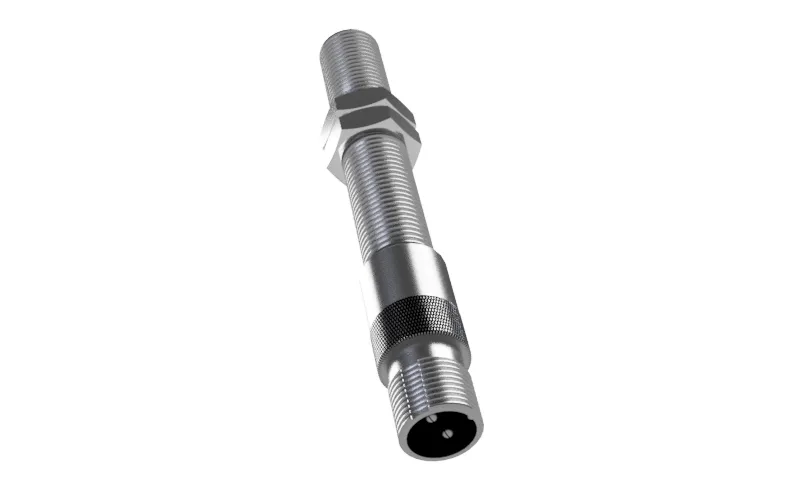

| PUZZO Hall Effect Speed Sensor |
| Export Quality |
| Sector Construction & Mining Equipemts |
| Material SS304 Non Magnetic |
| Millatery Style Connector |
| Rugged Application |
| Produces electrical frequency |
| Vibration Test as per standard IEC600682-6:2007 |
| Water proof Ingress Protection IP67 Tested |
| High Temperature Proof Wires |
| Available for hazardous location installation (not certified) |
| Country of Origin: Make In India |
| Twintech Part No. | |
| Part Name | PUZZO Hall Effect Speed Sensor |
| Threading | M16 X1.0 |
| Threading Lenght | 50.0mm |
| Probe Connector | Millatery Style Connector 3 Pin Male |
| Cable Length | Millatery Style Connector 3 Pin Female with 10 Meters Cable |
| Operating Temperature | -40 ºC to +106 ºC |
| Output Type | Sqaure Wave |

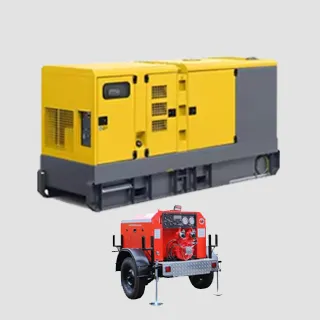

Digital hourmeters are essential in generators to monitor the runtime for maintenance scheduling, fuel consumption tracking, and ensuring optimal performance during power outages
