Magnetic Speed Sensors, Digital Tachohour Meters, Digital Hourmeters

INTRODUCTION

Twintech Control Systems Pvt. Ltd. has established a strong reputation and nationwide presence in India's Agriculture & Sugar industry sector. The company specializes in designing and manufacturing electronic products tailored for these industries, including:

- Magnetic Speed Sensors , Digital Tachohour Meters, Digital Hourmeter These devices are crucial for monitoring engine speed and operational hours, contributing to effective equipment management.

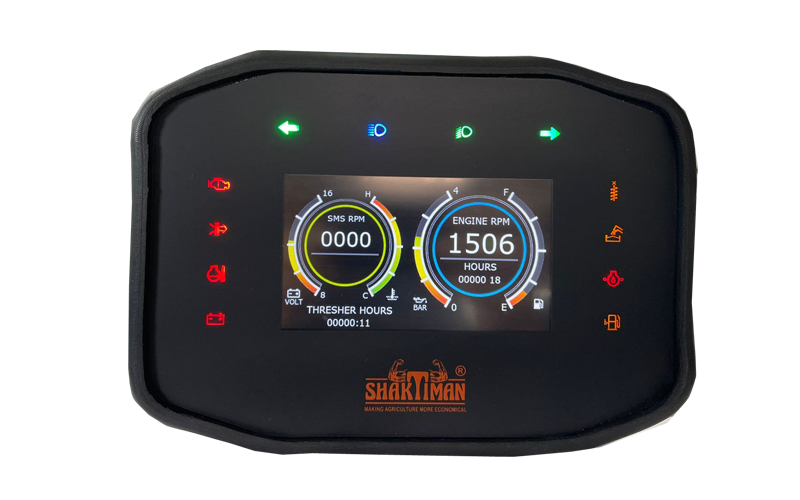

- CAN Bus Displays and Digital Clusters: These are integrated into vehicles and machinery to monitor real-time data such as engine performance, fuel levels, and hydraulic systems, enhancing operational efficiency.

With a robust network of over 100 dealers across India, Twintech ensures widespread distribution and support for its products. Their commitment to innovation and quality has solidified their standing in the Agriculture & Sugar industry sector

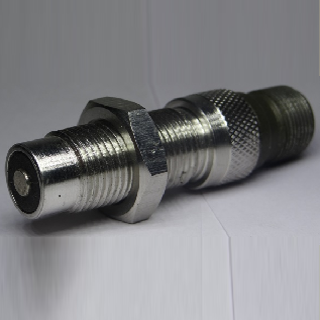

Magnetic Speed Sensors (Magnetic Pickups)

Types of 5/8-18 UNF Magnetic Speed Sensors

Twintech Part No. : TCUMPU1404
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU3272
Threading : 5/8 " 18UNF
Threading length : 80.0mm
Probe Connector : Same as expect to Matting Millatry style Connector
Cable Length : N.A
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5360
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4838
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4572
Threading : 5/8 " 18UNF
Threading length : 83.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5824
Threading : 5/8 " 18UNF
Threading length : 80.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5447
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4573
Threading : 5/8 " 18UNF
Threading length : 127.0mm
Probe Connector : Teflon wires leads + Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU1360
Threading : 5/8 " 18UNF
Threading length : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 3300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUHRN3273
Threading : 5/8 " 18UNF
Threading length : N.A
Probe Connector : Moulded Harness with 2 way Male Pins
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : N.A

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU2915
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0793
Threading : 5/8 " 18UNF
Threading length : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU2414
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : 4 Core Wires Leads + 3 way Power lock connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0796
Threading : 5/8 " 18UNF
Threading length : 51.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0799
Threading : 5/8 " 18UNF
Threading length : 55.0mm
Probe Connector : Wires Leads + 2 way TT Make Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0001
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU2754
Threading : 5/8 " 18UNF
Threading length : 50.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 3.5 Meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : 5/8 " 18UNF
Threading length : 50 mm / 76 mm / 114.0 mm
Probe Connector : 2 Pin Male Millatery Style connector
Cable Length : 2 Meters long with Female Connector
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.5 K ohms

Send Request MOQ : 30 nos

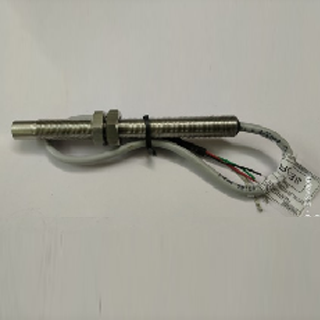

Types of M16 Magnetic Speed Sensors

Twintech Part No. : TKMPU28
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKDMPU29
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKMPU31
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 Pole Amp Make connector Male
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : M16X1.5mm
Threading length : 95 mm
Probe Connector : Rubber Gromet
Cable Length : 14/36 2 Core Shielded cable 400 mm long
Operating Temperature : 40 ºC to +106 ºC
Coil Resistance : 800 to 1.5 K ohms

Send Request MOQ : 30 nos

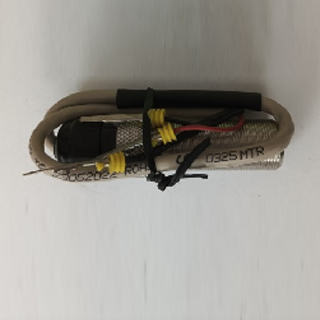

Types of M18 Magnetic Speed Sensors

Twintech Part No. :
Threading : M18x1.0
Threading length : 40mm
Probe Connector : Pg 9 Cable Gland
Cable Length : 14/36 2 Core Shielded cable 300 mm long
Operating Temperature : 40 ºC to +106 ºC
Coil Resistance : 800 to 1.5 K ohms

Send Request MOQ : 30 nos

Digital Hourmeter

Twintech Part No. : TDHM3700
Supply : 9-60 V. DC
Input : 12-24 V. DC
Display : LCD Display 6 digits with Backelight
IP : 65
Operating Temperature : -30 to 80 °C

Cut-out Size in mm : 52.0mm Diameter

Send Request MOQ : 30 nos

Types of Digital Tachohour Meters

Digital Tachohour Meters with Inbuilt Battery

Twintech Part No. :
Part Name : Digital Tachohour Meters with Inbuilt Battery
Supply : N.A
Input : Magnetic pickup / Hall effect / Proximity
Display : Single 4 & 1/2 LCD Display
Range : 0 to 9999 RPM
Hours : Press Button for Hours Showing
Teeth Gear Calibration : N.A
Connection : 2 Studs
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A

Battery Life : One Year Only

Send Request MOQ : 06 nos

Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication

Twintech Part No. :
Part Name : Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Dual Display 4 Digit LCD & 6 Ligit LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Hours : Seperate Display for Hours
Teeth Gear Calibration : Using Mobile App
Connection : 9 Pin Connectors
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : Set by Mobile App
