INTRODUCTION

Twintech Control Systems Pvt. Ltd. has established a strong reputation and nationwide presence in India's Textile Industry Sector. The company specializes in designing and manufacturing electronic products tailored for these industries, including:

- Magnetic Speed Sensors , Digital Hourmeter, Digital RPM Indicators These devices are crucial for monitoring engine speed and operational hours, contributing to effective equipment management.

- Digital Solid State Potentiometers : A digital solid-state potentiometer (DSSP) is an advanced electronic component used in various industrial applications, including Diesel Generator (DG) synchronizing panels. It replaces traditional mechanical potentiometers with solid-state technology, offering higher reliability, precision, and automation capabilities

With a robust network of over 100 dealers across India, Twintech ensures widespread distribution and support for its products. Their commitment to innovation and quality has solidified their standing in the Textile Industry Sector

Magnetic Speed Sensors (Magnetic Pickups)

Types of M12 Magnetic Speed Sensors

Twintech Part No. : TSEMPU1198
Threading : M12 X 1.75
Threading length : 60.0mm
Probe Connector : Wires leads + 2 pole connector 210 series
Cable Length : 85.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : M12 X 1.
Threading length : 100 / 50 mm
Probe Connector : SS 304 Non magnetic
Cable Length : White & Black Wires 300 mm
Operating Temperature : -20 ºC to +85 ºC
Coil Resistance : 800 to 1.5 K ohms
Lock nuts : 2nos

Send Request MOQ : 30 nos

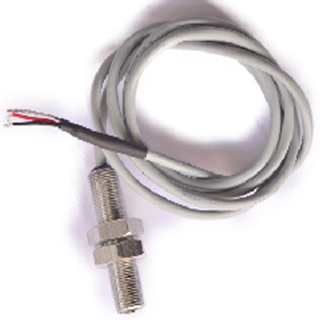

74). 10M1210D111

Threading M12 X 1.0mm

50 mm

Led Holder as Bush

2 Core PVC Shielded, 1 Meter Long Wires

2 Lock Nuts

N/A

Coil Resistance 1000-1020 Ohms, Single Sine Wave Output

Types of M16 Magnetic Speed Sensors

Twintech Part No. : TKMPU28
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKDMPU29
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKMPU31
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 Pole Amp Make connector Male
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms>

Send Request MOQ : 30 nos

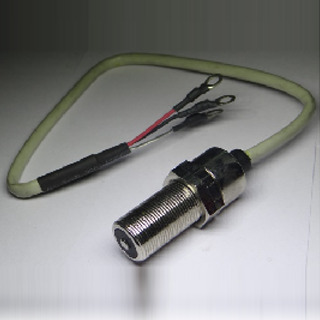

Twintech Part No. :
Threading : M16 X1
Threading length : 50 mm
Material : Brass / SS 304 Non magnetic
Probe Connector : 3 Pin Connector MRS Series
Cable Length : 2 core sheilded cable 600 mm With Round lugs
Operating temperature : -20 ºC to +85 ºC
Coil Resistance : 800 to 1.5 K ohms
Lock nuts : 2nos

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : M16 X1
Threading length : 60 mm
Material : SS 304 Non magnetic
Probe Connector : Rubber Gromet
Cable Length : Teflon 2 core Shielded 5 meters long
Operating temperature : -20 ºC to +85 ºC
Coil Resistance : 800 to 1.5 K ohms
Lock nuts : 2nos

Send Request MOQ : 30 nos

Types of M14 Magnetic Speed Sensors

113). 10M14101001	Threading M14 X 1.0 mm	Threading Length: 60 mm, Hex: 20 mm, Total Length: 80 mm	Rubber Grommet, Cable: 14/36 2 Core Shielded, 3 m	Coil Resistance: 1200 Ω, Lock Nut: 2 Nos.
114). 15M1410D111	Threading: M14 X 1.5	Threading Length: 60.0 mm	Rubber Grommet, 2 Core Shielded Wire, 1 m	Output: Sine Wave Output, Lock Nuts: 2 Nos., Coil Resistance: 1.5K ± 50 Ω

Request a Quote Application

Digital RPM Indicators RED LED Seven Segment Display

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators RED LED Seven Segment Display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set @ 142 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Size in mm : 96 X 96 X 65
Cut out : 92 X 92

Send Request MOQ : 06 nos

Digital Hourmeter

Twintech Part No. : TDHM3700
Supply : 9-60 V. DC
Input : 12-24 V. DC
Display : LCD Display 6 digits with Backelight
IP : 65
Operating Temperature : -30 to 80 °C

Cut-out Size in mm : 52.0mm Diameter

Send Request MOQ : 30 nos

Types of Digital Solid State Potentiometers

DPS – 0 to 5V / Customized

Twintech Part No. : TCUDPS-05
Supply : 12 - 32 VDC
Ouput : 0 to 5V DC / Customized
Display : RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 96 X 125
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

DPS – 3 to +3V / Customized

Twintech Part No. : TCUDPS-03
Supply : 12 - 32 VDC
Ouput : -3 to +3 VDC / Customized
Display : RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 96 X 125
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

Dual Output DPS – 0 to 5 and -3 to +3V DC / Customized

Twintech Part No. : TCUDDPS-53
Supply : 12 - 32 VDC
Ouput : 0 to 5VDC & -3 to +3 VDC / Customized
Display : 2 Seperates RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 229 X 150
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos
