Magnetic Speed Sensors (Magnetic Pickups)

INTRODUCTION

Twintech Control Systems Pvt. Ltd. has established a strong reputation and nationwide presence in India's industrial Automation sector. The company specializes in designing and manufacturing electronic products tailored for these industries, including:

- Magnetic Speed Sensors , Digital Tachohour Meters , Digital Hourmeter, Digital RPM Indicators These devices are crucial for monitoring engine speed and operational hours, contributing to effective equipment management.

- Digital Solid State Potentiometers : A digital solid-state potentiometer (DSSP) is an advanced electronic component used in various industrial applications, including Diesel Generator (DG) synchronizing panels. It replaces traditional mechanical potentiometers with solid-state technology, offering higher reliability, precision, and automation capabilities

With a robust network of over 100 dealers across India, Twintech ensures widespread distribution and support for its products. Their commitment to innovation and quality has solidified their standing in the industrial Automation sector

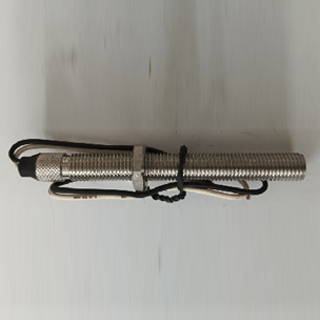

Types of M12 Magnetic Speed Sensors

Twintech Part No. : TSEMPU1198
Threading : M12 X 1.75
Threading length : 60.0mm
Probe Connector : Wires leads + 2 pole connector 210 series
Cable Length : 85.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : M12x1.0
Threading length : 100mm
Probe Connector : Rubber Gromet
Cable Length : Tef 1 Sq mm White & Black wires 300 mm
Operating Temperature : 40 ºC to +106 ºC
800 to 1.5 K ohms

Send Request MOQ : 30 nos

Types of M16 Magnetic Speed Sensors

Twintech Part No. : TKMPU28
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKDMPU29
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 pole connector 110 series Female
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TKMPU31
Threading : M16X1.5
Threading length : 82.0mm
Probe Connector : Wires leads + 2 Pole Amp Make connector Male
Cable Length : 100.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms>

Send Request MOQ : 30 nos

Twintech Part No. :
Threading : M16x1.0
Threading length : 60mm
Probe Connector : 2 Pin MS Connector
Cable Length : N.A
Operating Temperature : 40 ºC to +106 ºC
Coil Resistance : 800 to 1.5 K ohms

Send Request MOQ : 30 nos

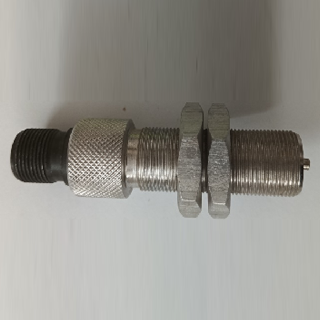

Types of M18 Magnetic Speed Sensors

Twintech Part No. :
Threading : M18x1.0
Threading length : 50mm
Probe Connector : 2 Pin MS Connector
Cable Length : N.A
Operating Temperature : 40 ºC to +106 ºC
Coil Resistance : 800 to 1.5 K ohms

Send Request MOQ : 30 nos

15M180901	Threading: M18 X 1.5	Length: 76 mm	10 mm Knurling, 1 Sq. mm, 300 mm Long Wires with Rubber Grommet	Resistance: 1000 ± 50 Ohms
10M181B15T1	Threading: M18 X 1.0	Length: 36.5 mm	With 4.3 mm Groove Before Knurling Step, Total Length: 55.8 mm, Knurling: 15 mm, 2 Core 14/36 Shielded 300 mm Long, PG-9 Cable Gland with 3 Terminals, Heatshrink Sleeve, Waterproof Connector, O Ring, 1 Lock Nut	Resistance: 1500 Ω
15M181101	Threading: M18 X 1.5 mm	Length: 50 mm	15 mm Knurling Step, MS Connector, 35 mtrs. 14/36 Two Core Shielded Cable	Coil Resistance: 1000 ± 50 Ω
10M181004	Magnetic Pick-Up Threading: M18 X 1	Length: 105 mm	Hex: 25 mm X 20 mm, Connector: 3 Pin MS Male, Lock Nut: 1 No, Nylon Washer
10M18123X	MPU Threading: M18 X 1.0mm	60 mm	Sensing Tip Dia: 3.0 mm, Connector: 2 PIN MS Connector, Cable: 2 Core Shielded 2 mtr., Lock Nut: 2 nos.	Coil Resistance: 1000 Ohms
10M180191	MPU Threading: M18 X 1.0	60 mm	Cable: 14/36 2 Core Shielded 300 mm long, Lock Nut: 2 nos.	Coil Resistance: 900-1100 Ohms
15M18109211	Threading M18 X 1.50 mm	35 mm	Lock Nut: 1, PVC 1 sq mm red black 300 mm, PVC Sleeve, Flying leads	Coil Resistance: 1000 Ohm
15M1801101	M18 X 1.5 mm	80 mm	15 mm Knurling, Direct Wire with Rubber Grommet, 14/36 Red & Black PVC 300 mm long with PVC Sleeve, Output: Single Sine Wave	Coil Resistance: 1500 Ohms, 3 Pin Power Lock Connector
15M18240001	M18 X 1.5 mm	95 mm	Connector: MS 2-pin assembly, Inbuilt Locknut Material: SS, Lock Nut: 27 A/F of 10.0 mm height, Sensing Gap: 0.5 to 1.0 mm	Coil Resistance: 675 Ω

Request a Quote Application

Digital Hourmeter

Twintech Part No. : TDHM3700
Supply : 9-60 V. DC
Input : 12-24 V. DC
Display : LCD Display 6 digits with Backelight
IP : 65
Operating Temperature : -30 to 80 °C

Cut-out Size in mm : 52.0mm Diameter

Send Request MOQ : 30 nos

Digital RPM Indicators (With LCD / LED Display / Adjustable Overspeed / Programmable), Digital RPM Hour Indicators

Digital RPM Indicators with Adjustable Overspeed

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators with Adjustable Overspeed
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set / Customized using Mobile app
Connection : 7 Screw Terminals on back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : upto 3 Relay outputs with LED Indication on Front side
Size in mm : 96 X 96 X 125>
Cut out : 92 X 92

Send Request MOQ : 06 nos

Digital RPM Indicators Programmable

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators Programmable
Supply : 12-32 VDC / 230V AC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : 4 to 20mA / 0 to 10V
Teeth Gear Calibration : Set Through Front Switches
Connection : Terminals on back sides
Hours : N.A
Mounting Clamp : 2 side Clamps

Overspeed / Relay Output : upto 3 Relay outputs with LED Indication on Front side
Size in mm : 96 X 96 X 125
Cut out : 92 X 92

Send Request MOQ : 06 nos

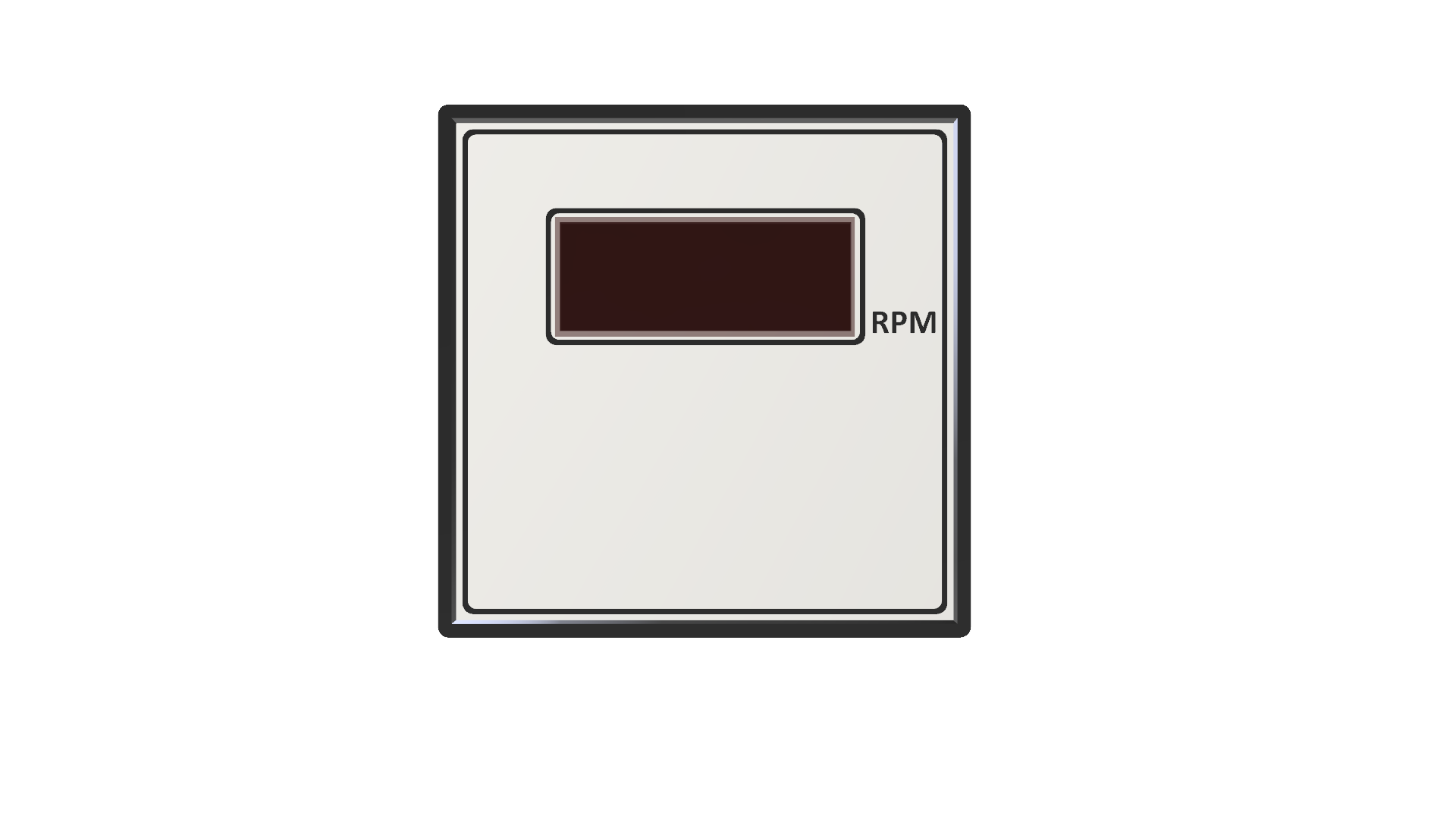

Digital RPM Indicators RED LED Seven Segment Display

Twintech Part No. :
Twintech Part Name : Digital RPM Indicators RED LED Seven Segment Display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set @ 142 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Size in mm : 96 X 96 X 65
Cut out : 92 X 92

Send Request MOQ : 06 nos

Digital Twin Tachohourmeter Bluetooth Enable

Twintech Part No. :
Part name : Digital Twin Tachohourmeter Bluetooth Enable
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : Dual Display 4 Digit LCD & 6 Ligit LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Hours : Seperate Display for Hours
Teeth Gear Calibration : Using Mobile App
Connection : 4 Studs
Cut-out Size in mm : 85.0mm Diameter
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A

Send Request MOQ : 06 nos

Types of Digital Solid State Potentiometers

DPS – 0 to 5V / Customized

Twintech Part No. : TCUDPS-05
Supply : 12 - 32 VDC
Ouput : 0 to 5V DC / Customized
Display : RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 96 X 125
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos

Dual Output DPS – 0 to 5 and -3 to +3V DC / Customized

Twintech Part No. : TCUDDPS-53
Supply : 12 - 32 VDC
Ouput : 0 to 5VDC & -3 to +3 VDC / Customized
Display : 2 Seperates RED Led 4 Digits Seven Segment
Control : Through Controller Raise & Lower + Through front switches Increment & Decrement
Connection : Terminals on back sides
Resolution : 0.01 / 0.1 / Customized
Mounting : Panel Mount / Wall Mount
Size in mm : 96 X 229 X 150
Clamp : 2 Slotted Clamps

Send Request MOQ : 06 nos
