Digital / CAT Tacho Hour Meters

We are Manufacturer, Supplier, Exporter of Tacho Hour Meters, RPM Indicators, Magnetic Speed Sensors, Import Substitute MPU, Hall Effect Sensors, Digital Solid State Potentiometers, Digital Hour Meters, Speedometer, Customized Temperature Switches, CAN Bus Displays, Safety Test Rig Kits, Customized Process Indicators from Pune, Maharashtra, India.

Digital Tachohourmeters

INTRODUCTION

Twintech design and manufacture Digital Tachohour Meters for many OEMs in India

Digital Tachohour Meters: A Digital Tachohour Meters is a device used to measure and display the operating hours and revolutions per minute (RPM) of an engine or motor. It is commonly used in various industries such as construction, agriculture, marine, automotive, and manufacturing to monitor the usage and maintenance intervals of equipment.

The Digital Tachohour Meters typically consists of a digital display unit and a sensor that attaches to the engine or motor. The sensor detects the rotation of the engine's crankshaft or output shaft and sends signals to the display unit, which calculates and displays the RPM and accumulated operating hours.

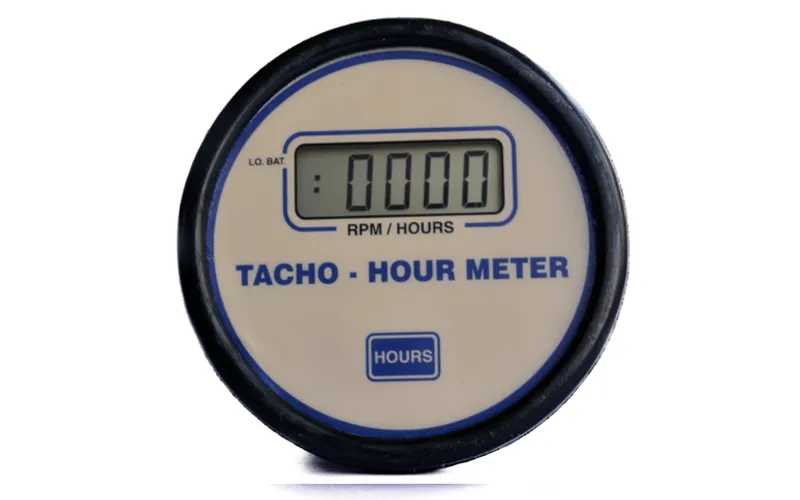

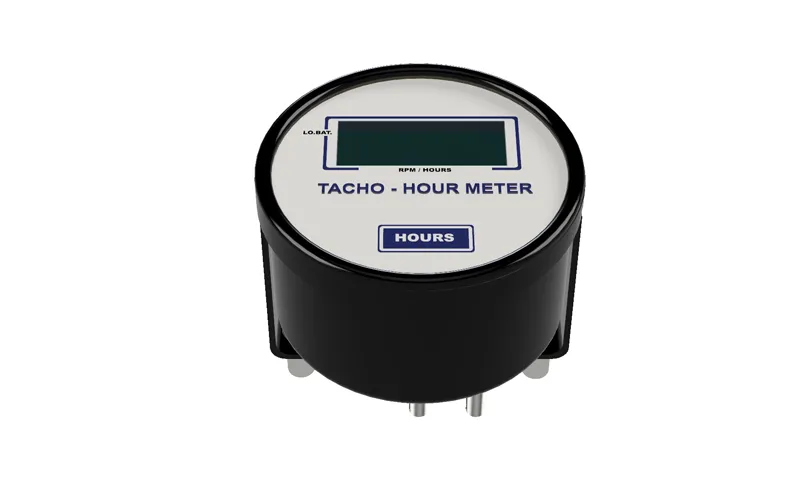

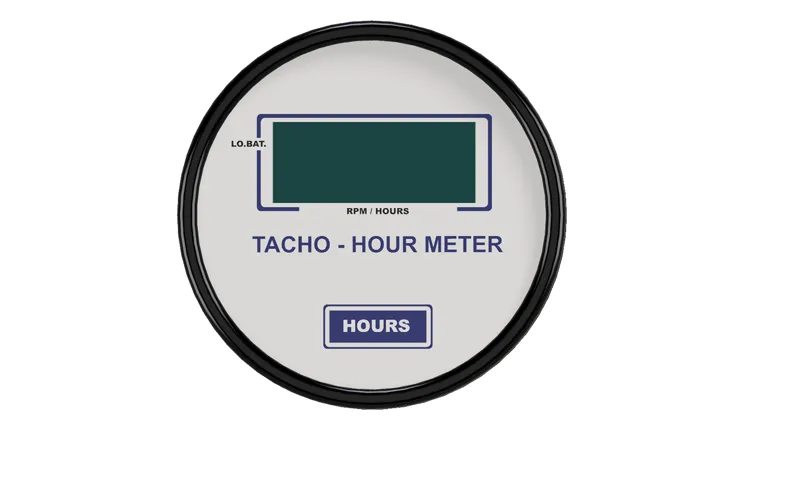

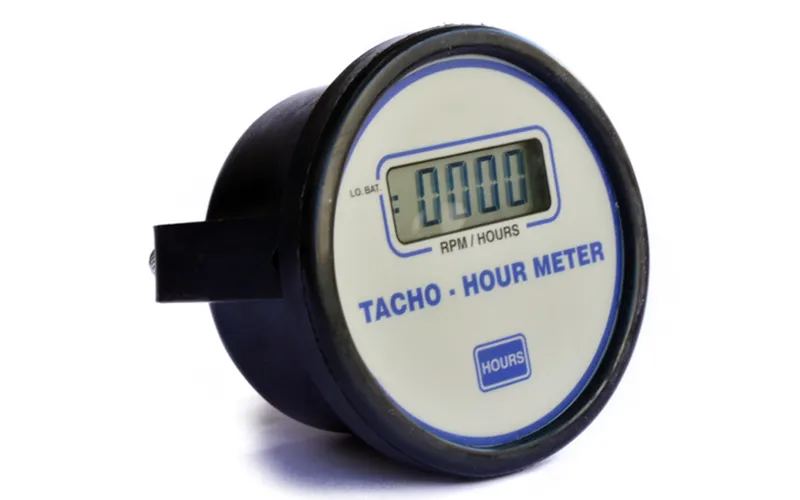

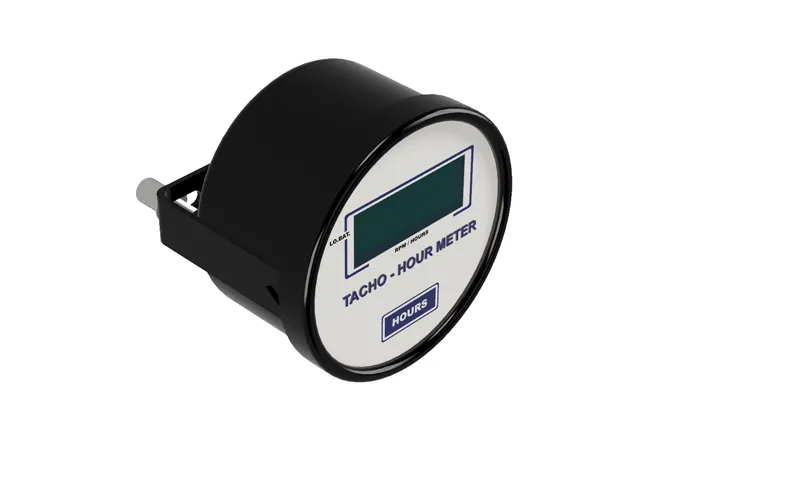

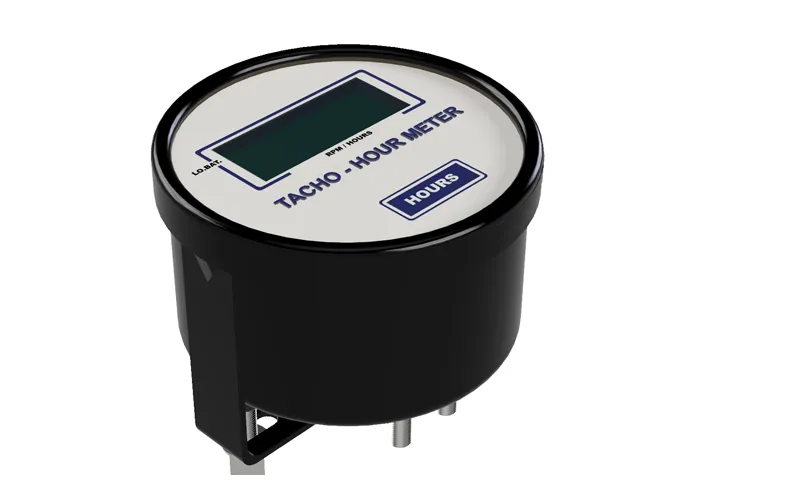

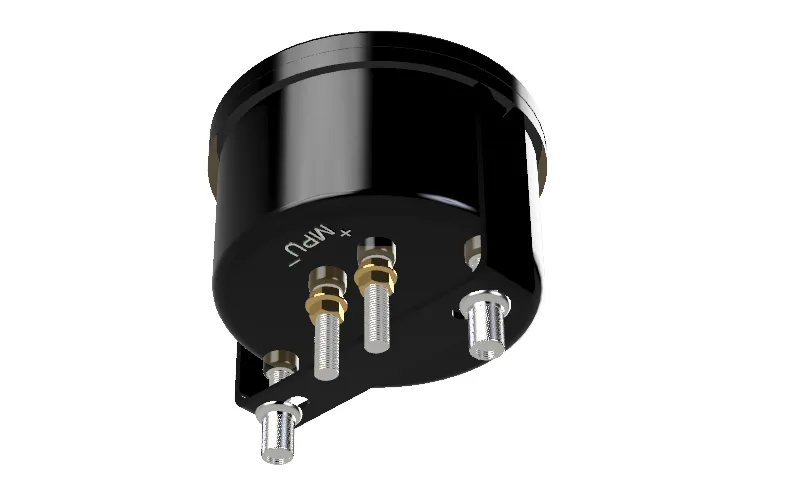

1). Digital Tachohour Meters with Inbuilt Battery

Slide 1
Slide 2
Slide 3
Slide 3
Slide 3
Slide 3
Slide 3
Slide 3
Application

Key Features :

Part No : DTHM2700
Fully Digital Display
Water proof Ingress Protection IP65 Tested
Vibration Test as per standard IEC600682-6:2007
Resolution 1 RPM
Accuracy 0.50%
Country of Origin Make in India
Minimum Order Quantity : 6 no's

Technical specifications

Supply 12-32 VDC
Input Magnetic pickup / Hall effect / Proximity
Display Single 4 & 1/2 LCD Display
Range 0 to 9999 RPM
Hours Press Button for Hours Showing
Teeth Gear Calibration N.A

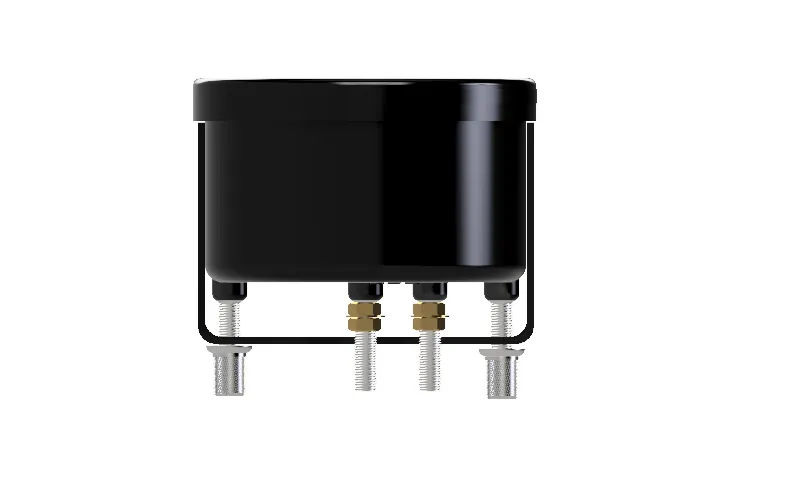

Connection 2 Studs
Cut-out Size in mm 85.0mm Diameter
Mounting Clamp C Clamp
Overspeed / Relay Output N.A
Request a Quote

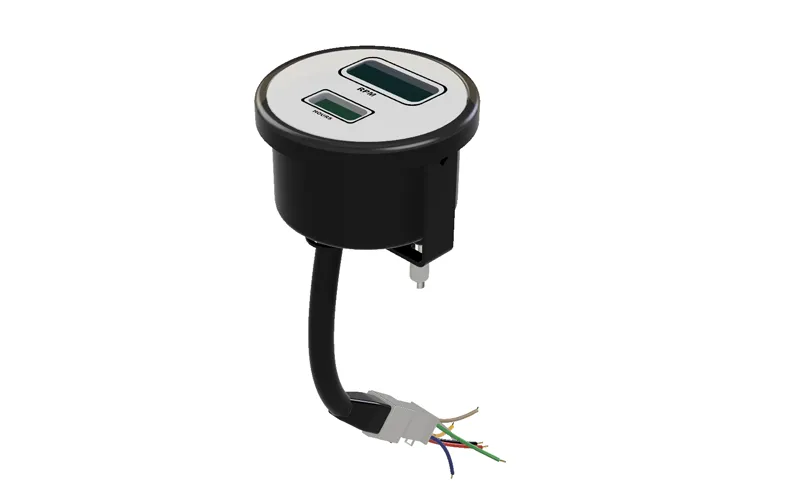

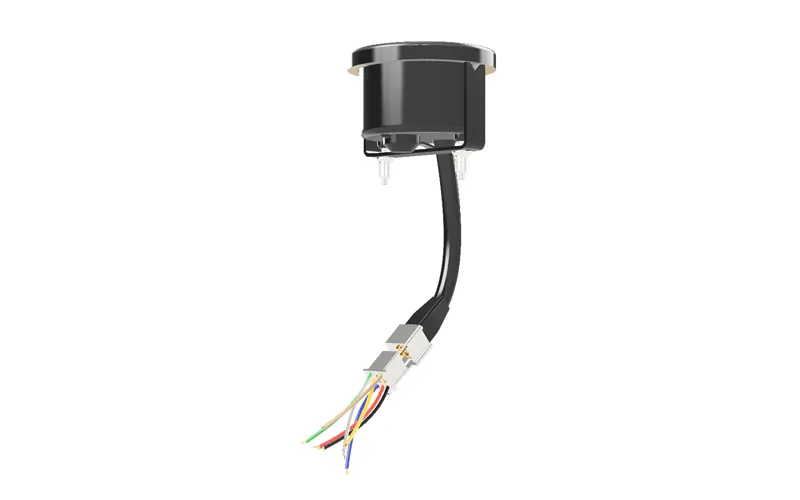

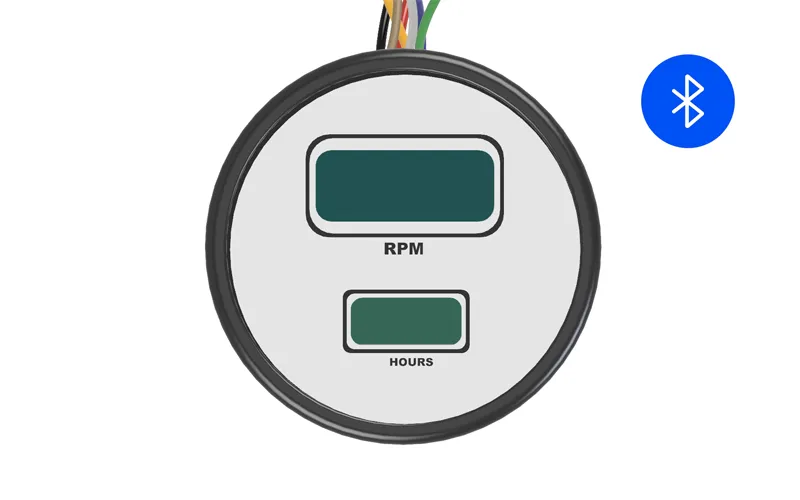

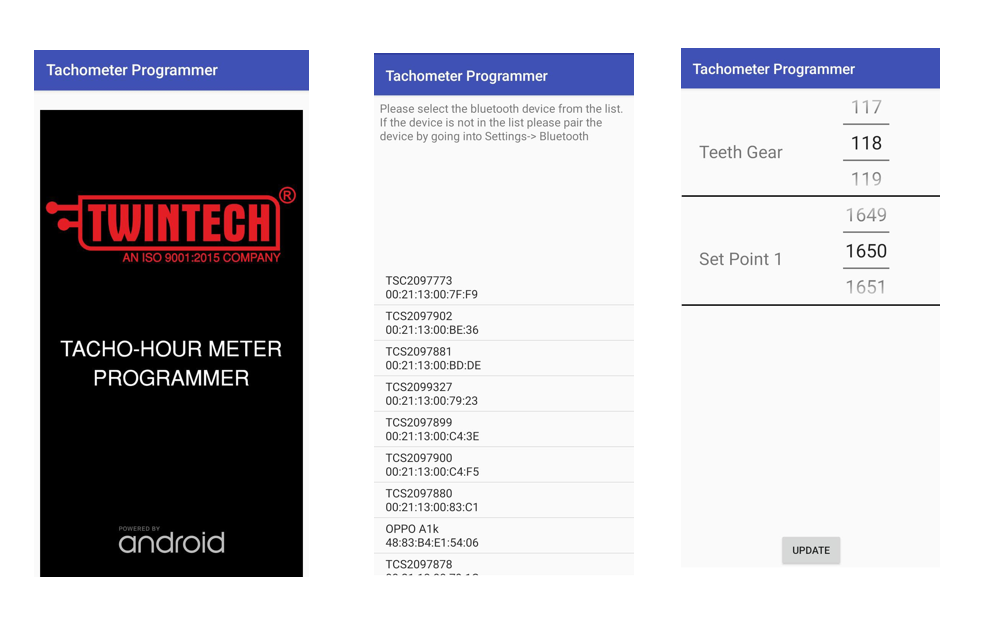

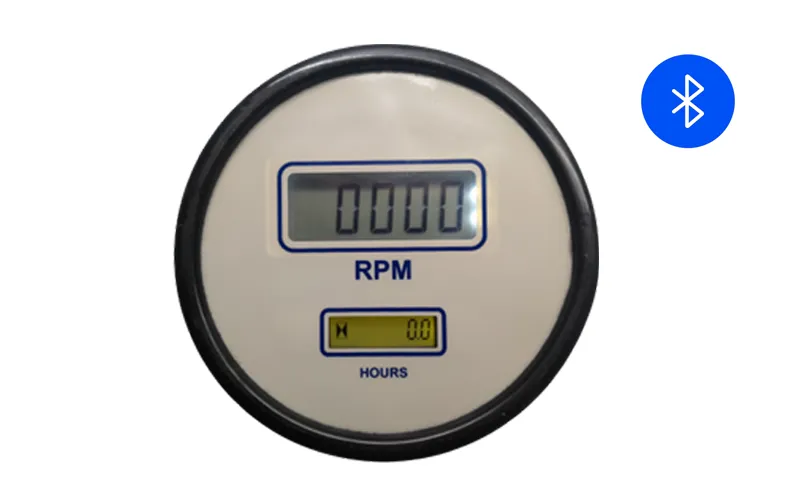

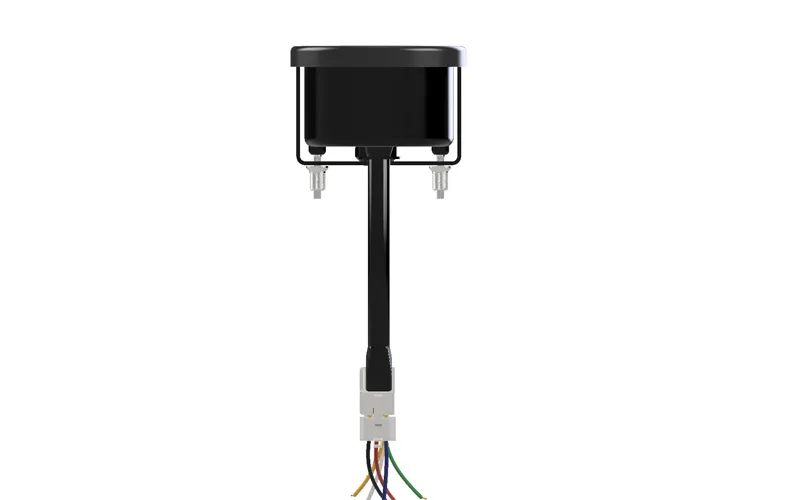

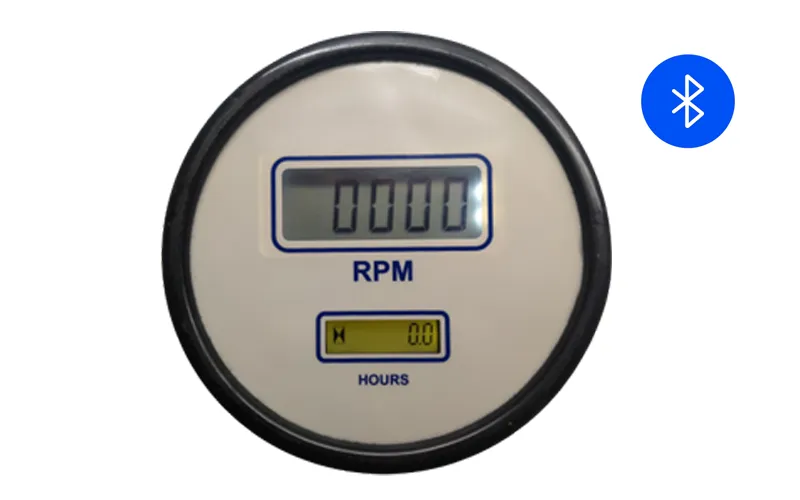

2). Digital Tachohour Meters Adjustable Overspeed set point using bluetooth communication

Application

Key Features :

Part No: DTHM2700-BTL
Fully Digital display
Teeth Gear selectable using mobile app
Adjustable Overspeed
Waterproof Ingress Protection IP65
Connection 9 pin connector
Vibration Test as per standard IEC60068
Resolution 1 RPM
Accuracy: 0.50%
Country of Origin: Make In India
Minimum Order Quantity : 6 no's

Technical specifications

Supply 12-32 VDC
Input Magnetic pickup / Hall effect / Proximity
Display Dual Display 4 Digit LCD & 6 Digit LCD
Range 0 to 9999 RPM & 0 to 99999 Hrs
Hours Separate Display for Hours
Teeth Gear Calibration Using Mobile App
Connection 9 Pin Connectors
Cut-out Size 85.0 mm Diameter
Mounting Clamp C Clamp
Overspeed / Relay Output Set by Mobile App
tacho-hour-meter
Request a Quote

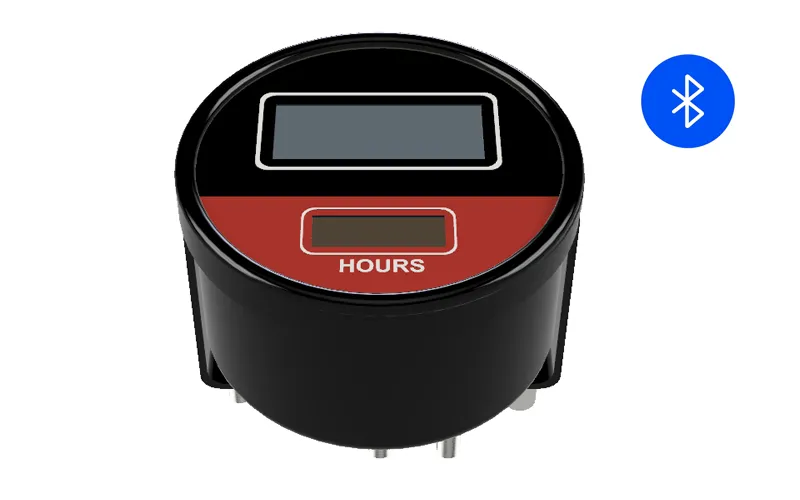

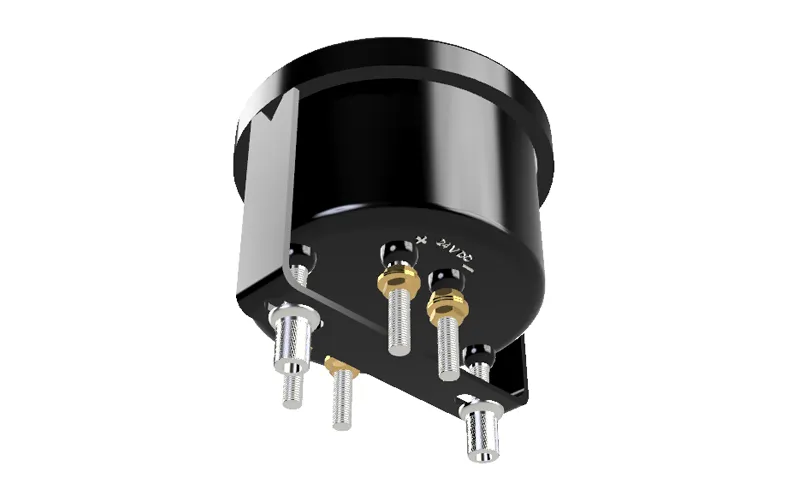

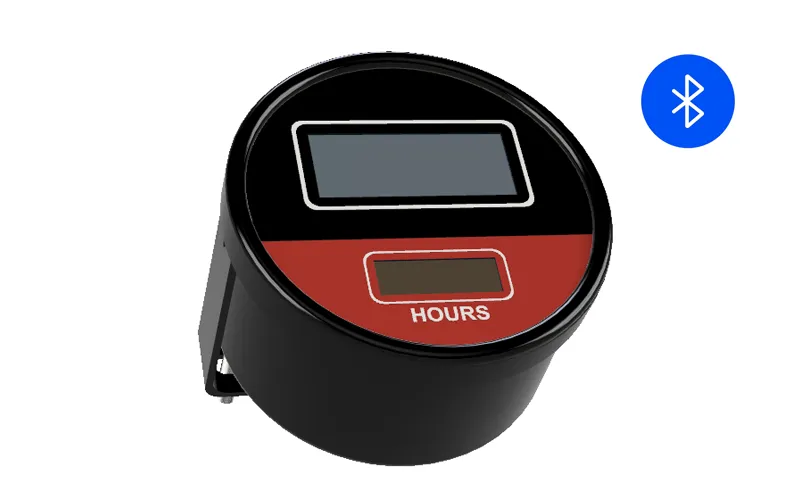

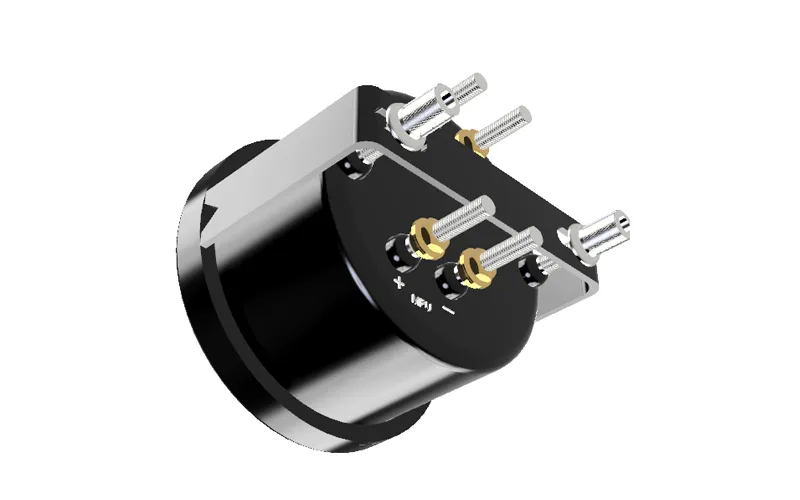

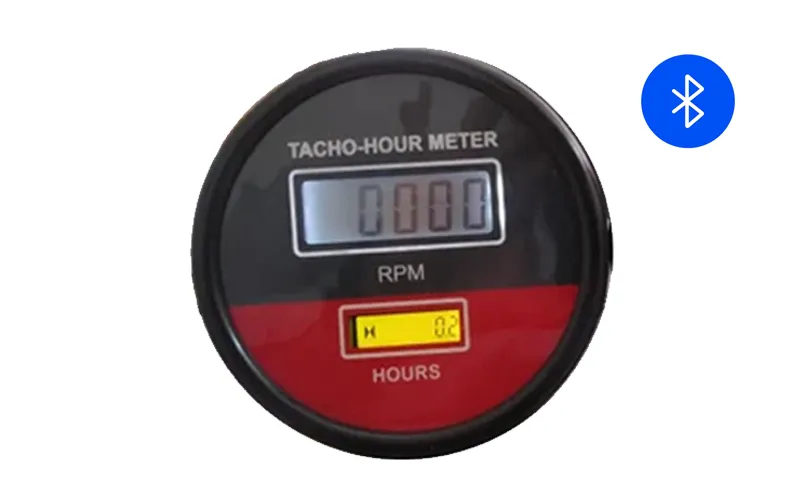

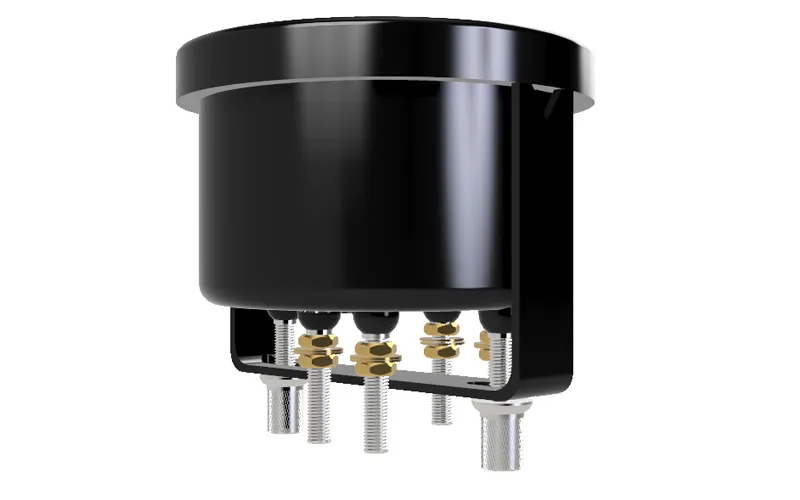

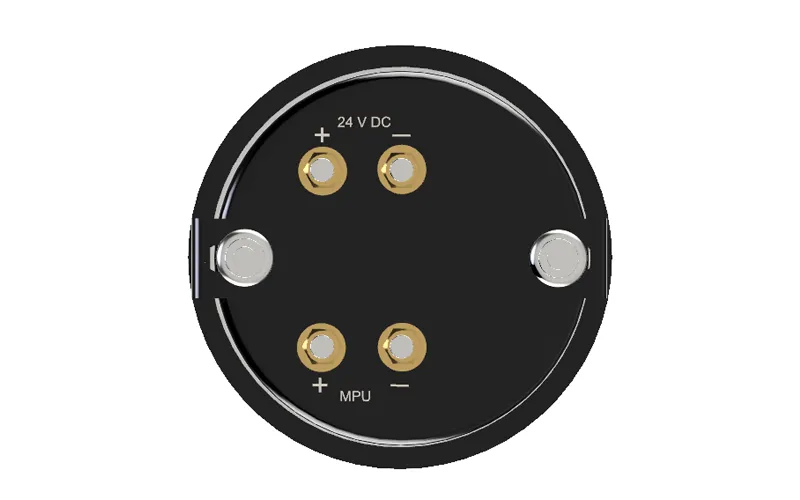

3). Digital Twin Tachohourmeter Bluetooth Enable

Application

Key Features :

Part No: DTHM2700H
Fully Digital display
Seperate Display for hours
Teeth Gear selectable using mobile app
Waterproof Ingress Protection IP65
Connection 4 Studs easy to install
Vibration Test as per standard IEC60068
Resolution 1 RPM
Accuracy: 0.50%
Country of Origin: Make In India
Minimum Order Quantity : 6 no's

Technical specifications

Supply 12-32 VDC
Input Magnetic pickup / Hall effect / Proximity
Display Dual Display 4 Digit LCD & 6 Digit LCD Display
Range 0 to 9999 RPM & 0 to 99999 Hrs
Hours Separate Display for Hours
Teeth Gear Calibration Using Mobile App
Connection 4 Studs
Cut-out Size 85.0 mm Diameter
Mounting Clamp C Clamp
Overspeed / Relay Output N.A.
tacho-hour-meter
Request a Quote

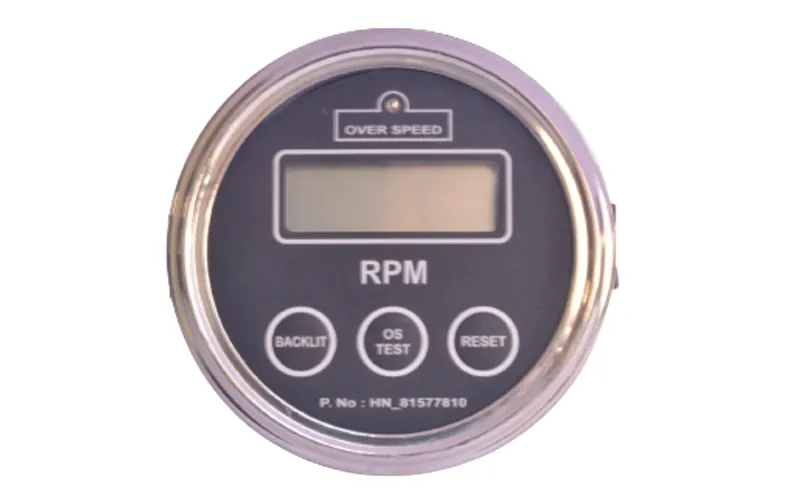

4). CAT Tachohour Meters

Application

Key Features :

Part No : TCPDTM7810
Fully Digital display
Operating Temperature 80 degree celcius
Teeth Gear Selecting Switch
Waterproof Ingress Protection IP65
Connection 9 pin connector
Vibration Test as per standard IEC60068
Resolution 1 RPM
Accuracy: 0.50%
Country of Origin: Make In India
Minimum Order Quantity : 6 no's

Technical specifications

Supply 12-32 VDC
Input Magnetic pickup / Hall effect / Proximity
Display Single 4 & 1/2 LCD Display
Range 0 to 9999 RPM
Hours N.A
Teeth Gear Calibration Specific Teeth Set by backside switches
Connection 9 Pin Connectors
Cut-out Size in mm 85.0mm Diameter
Mounting Clamp C Clamp
Overspeed / Relay Output Factory set
tacho-hour-meter
Request a Quote




Application

Responsive Image

Diesel Generators / Diesel Engines / Gensets / DG Sets

Tachohour meters are commonly integrated into generator sets to monitor engine hours and ensure timely servicing.

Responsive Image

Construction Equipments

Tachohour meters are commonly used in heavy equipment such as excavators, bulldozers, loaders, and cranes to monitor engine usage and maintenance intervals.

Responsive Image

Marine Industry

tachohour meters are used to monitor engine runtime and ensure timely maintenance. This is crucial for the safe operation of marine vessels and can also help in optimizing fuel consumption.

Responsive Image

Rental Equipments

Tachohour meters are often installed in rental equipment such as generators, compressors, and pumps to track usage hours for billing purposes.
