INTRODUCTION
Twintech design and manufacture digital solidstate potentiometer for OEM
DPS: A digital solid-state potentiometer, also known as a digital potentiometer or digipot, is an electronic component that emulates the functionality of a traditional mechanical potentiometer in a digital format. It is commonly used in electronic circuits to adjust resistance digitally rather than manually. The digital solid-state potentiometer is a versatile electronic component.
It is commonly used in various applications, including controlling the fuel injection timing in diesel engines. DPS which is used for controlling voltage and Speed of diesel engine ,By adjusting the resistance digitally, it can precisely regulate the fuel flow, optimizing engine performance.
In diesel engines, the potentiometer plays a crucial role in managing the combustion process. Its digital nature allows for finer adjustments compared to traditional mechanical potentiometers.
The solid-state design ensures reliability and durability in harsh engine environments.

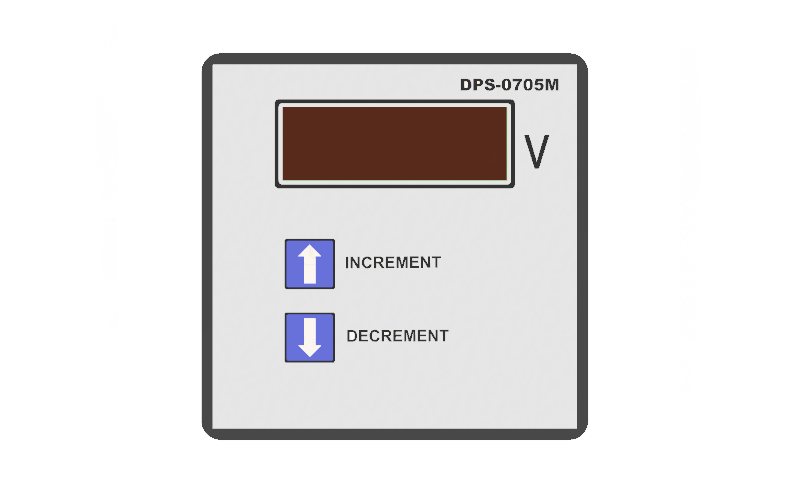

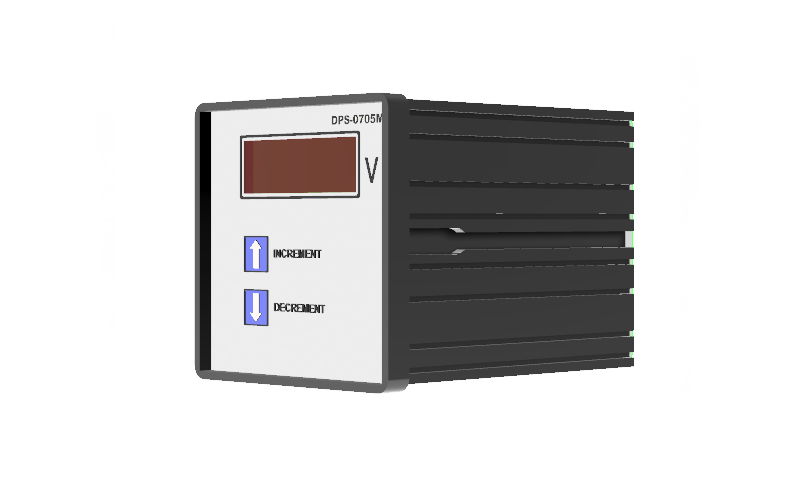

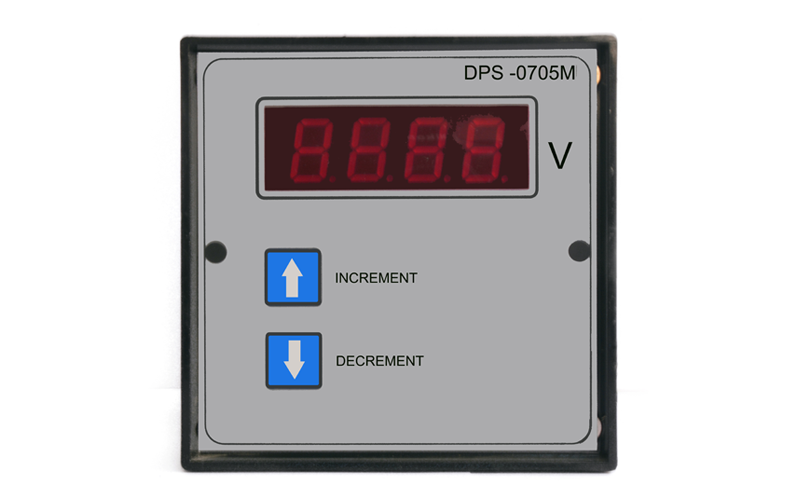

Key Features :

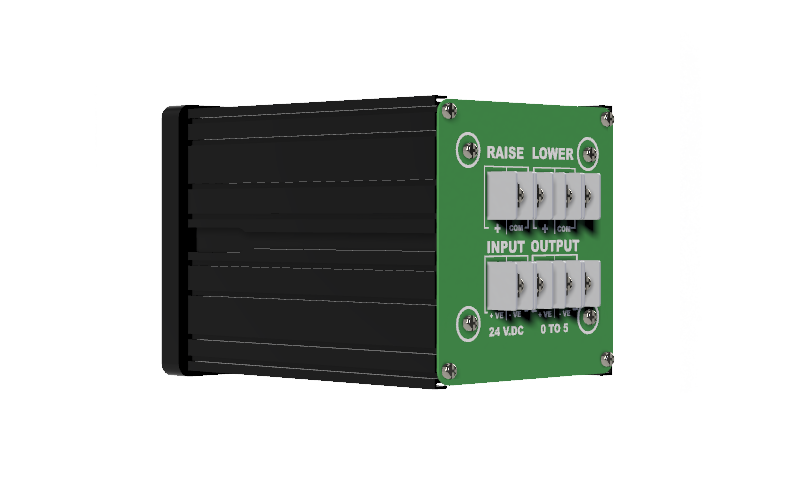

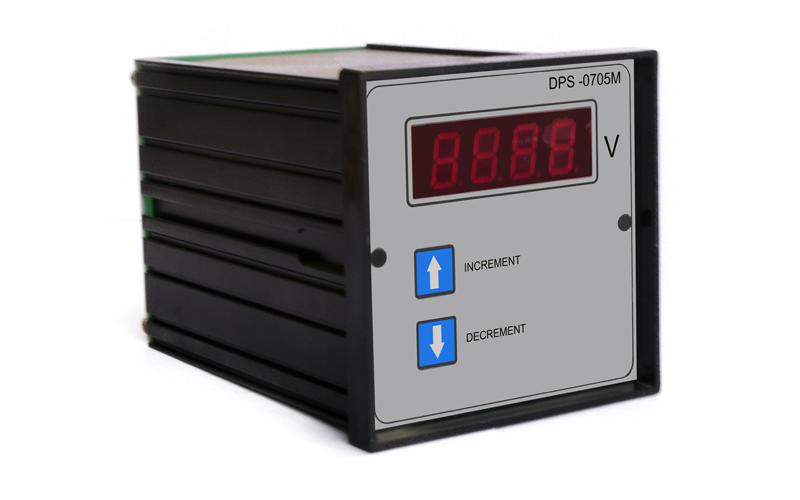

| Part No: TCUDPS-05 |
| 4 Digit Led Seven segment display |
| Digital Control |
| Wide range of voltage values |
| Non-volatile memory |
| Integration with PLC |
| Resolution 0.01 V |
| Accuracy 0.50% |
| Country of Origin: Make In India |
| Supply | 12 - 32 VDC |
| Output | 0 to 5V DC / Customized |
| Display | RED Led 4 Digits Seven Segment |
| Control | Through Controller Raise & Lower + Through front switches Increment & Decrement |
| Connection | Terminals on back sides |
| Resolution | 0.01 / 0.1 / Customized |
| Mounting | Panel Mount / Wall Mount |
| Size in mm | 96 X 96 X 125 |

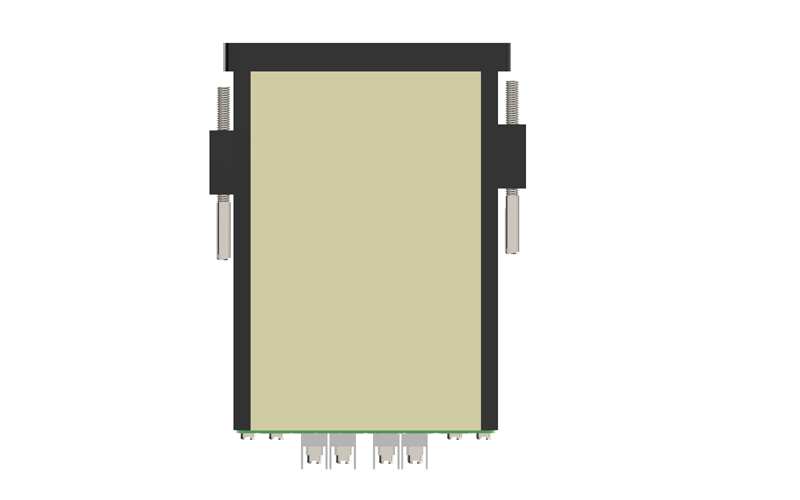

| Clamp | 2 Slotted Clamps |

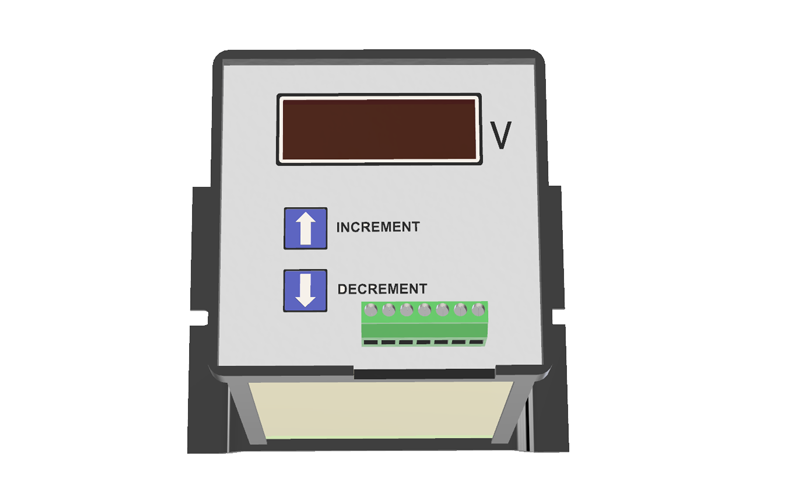

Key Features :

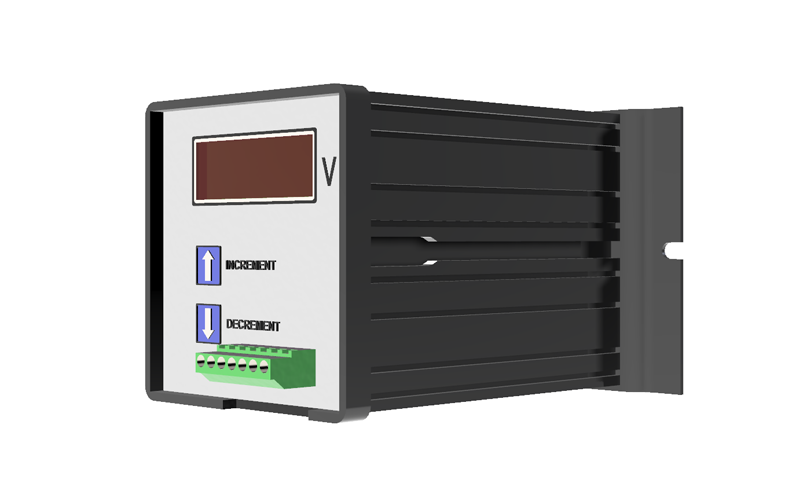

| Part No: TCUDPS-03 |
| 4 Digit Led Seven segment display |
| Digital Control |
| Wide range of voltage values |
| Non-volatile memory |
| Integration with PLC |
| Resolution 0.01 V |
| Accuracy 0.50% |
| Country of Origin: Make In India |
| Supply | 12 - 32 VDC |
| Output | -3 to +3 VDC / Customized |
| Display | RED Led 4 Digits Seven Segment |
| Control | Through Controller Raise & Lower + Through front switches Increment & Decrement |
| Connection | Terminals on back sides |
| Resolution | 0.01 / 0.1 / Customized |
| Mounting | Panel Mount / Wall Mount |
| Size in mm | 96 X 96 X 125 |
| Clamp | 2 Slotted Clamps |

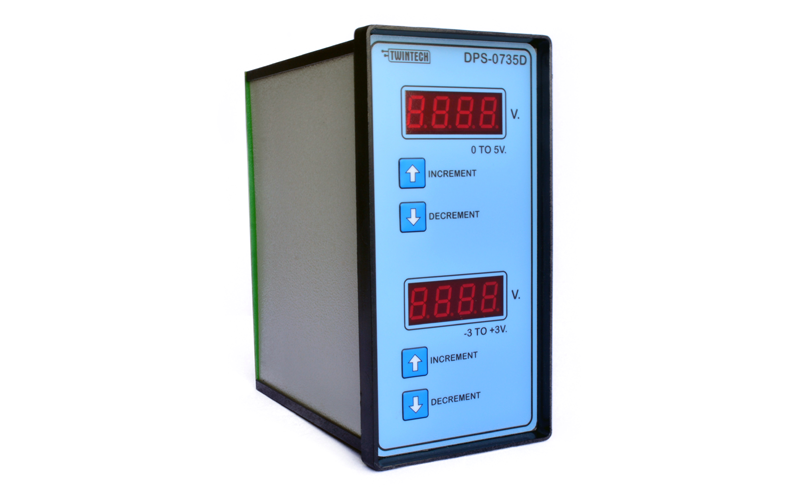

Key Features :
| Part No : TCUDDPS-53 |
| 2 Seperate 4 Digit Led Seven segment display for each channel |
| Digital Control |
| Multiple Channels |
| Wide range of voltage values |
| Non-volatile memory |
| Integration with PLC |
| Resolution 0.01 V |
| Accuracy 0.50% |
| Country of Origin: Make In India |
| Twintech Part No. | TCUDDPS-53 |
| Supply | 12 - 32 VDC |
| Output | 0 to 5VDC & -3 to +3 VDC / Customized |
| Display | 2 Separate RED Led 4 Digits Seven Segment |
| Control | Through Controller Raise & Lower + Through front switches Increment & Decrement |

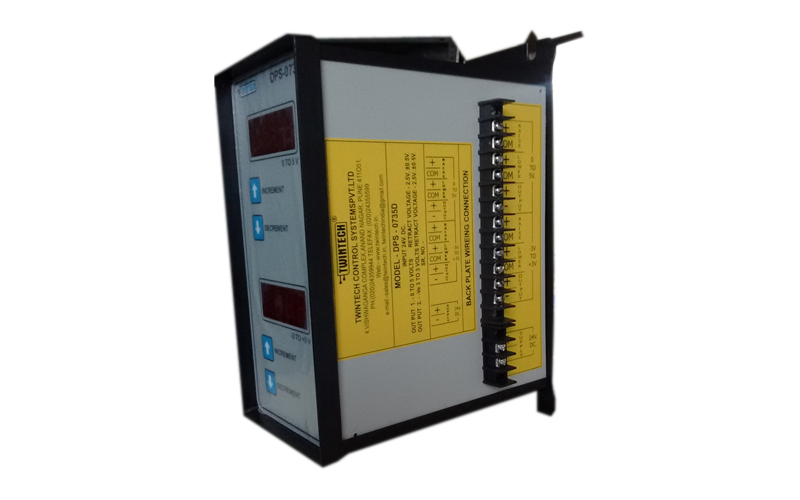

| Connection | Terminals on back sides |
| Resolution | 0.01 / 0.1 / Customized |
| Mounting | Panel Mount / Wall Mount |
| Size in mm | 96 X 229 X 150 |
| Clamp | 2 Slotted Clamps |
By integrating the potentiometer into the engine control unit (ECU), it can be used to adjust the engine speed within a specified range, providing flexibility in different operational scenarios.
In motor control circuits, digital potentiometers are used to adjust speed, torque, and position control parameters in applications like industrial automation and robotics.
The potentiometer can be employed in throttle control systems to regulate the amount of air or fuel entering the engine, optimizing combustion for better fuel efficiency and emissions control.
GR systems help reduce nitrogen oxide emissions by recirculating a portion of exhaust gases back into the engine. The digital potentiometer can be used to control the EGR valve position for precise adjustments.
In diesel generator sets, the potentiometer can regulate the generator output voltage, ensuring a stable.
The digital potentiometer can be integrated into cruise control systems to maintain a constant speed, enhancing fuel efficiency during highway driving.
