INTRODUCTION
Twintech design and manufacture temperature switches for many OEM's in India
Temperature switches are used to measure temperature. The working of a temperature switch is based upon the temperature variations taking place in an enclosed space, or in an open area adjoining the temperature detecting component. In general, the functioning of a temperature switch and a pressure switch is almost same since both the devices get triggered by variations in pressure. In many of the temperature switch designs, the temperature sensing element is positioned in such a way that the rise or drop in temperature results in the increase and decrease of internal pressure of liquid or gas such as in liquid filled temperature switches. This variation in pressure can then be used to actuate a switching mechanism.
Key Features :

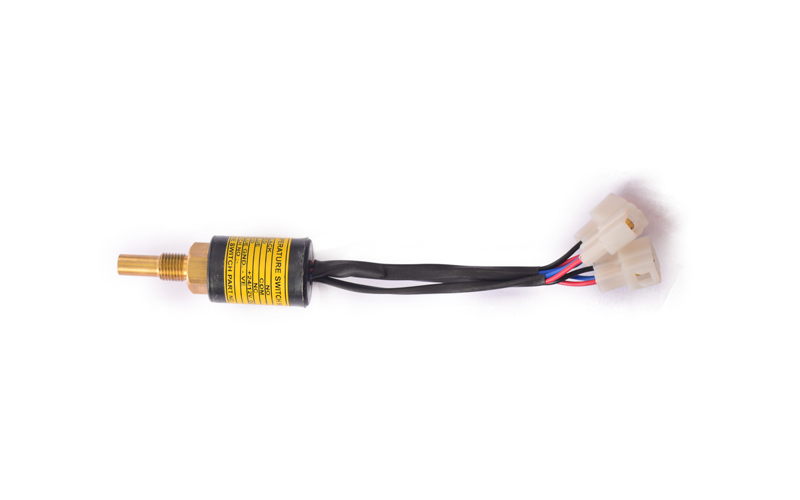

| GCL Temp Switch 96 |
| Temperature Range 95 °C±5 |
| Switching Normally Open |
| High Accuracy |
| Diesel engine application |
| Material Brass |
| Thread mounted |
| Easy to install |
| Country of Origin: Make In India |
| Supply | 24 VDC |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Open |
| Threading | 240 X 240 dots (RGB) |
| Operating Temperature Range | 90 to 100 °C |
| Operating Temperature | -20 to +70° C |
| Reset Temperature | 75 to 85 °C |
| Connector | 310 MSSL Series |
| Potential free contact | 2 nos |
| Material | Brass |
| Enclosure | Nylon 6 |
| Current Rating | 10Amp |
Key Features :

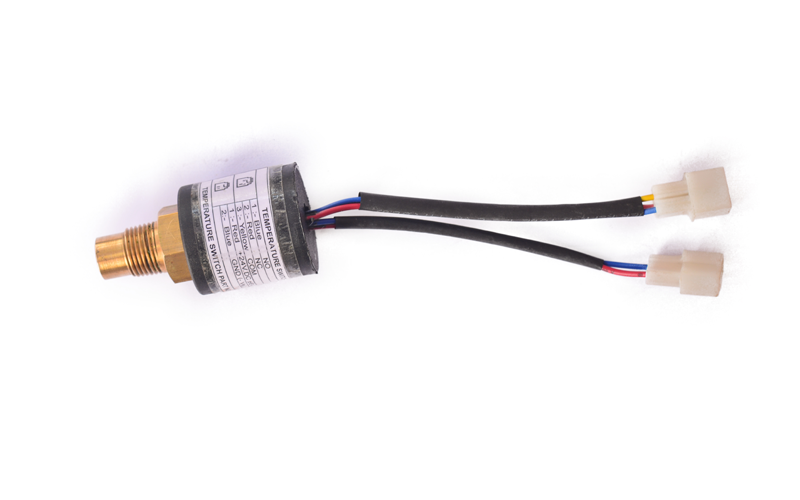

| Part No: GCL Temp Switch 80 |
| Temperature Range 95°C ±5 |
| Switching Normally Open |
| High Accuracy |
| Diesel engine |
| Material Brass |
| Thread mounted |
| Easy to install |
| Country of Origin: Make In India |
| Supply | 24 VDC |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Open |
| Threading | 1/2" BSP |
| Operating Temperature Range | 90 to 100 °C |
| Reset Temperature | 75 to 85 °C |
| Connector | 310 MSSL Series |
| Potential free contact | 2 nos |
| Enclosure | Nylon 6 |
| Current Rating | 10Amp |
Key Features :

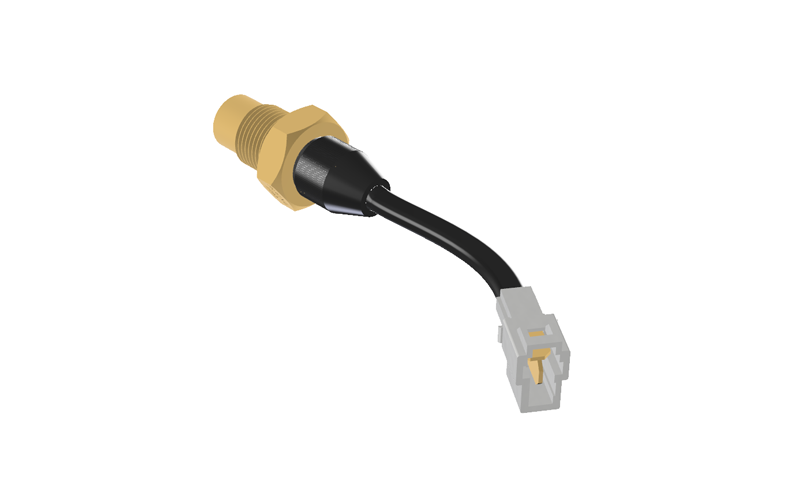

| Part No: Rev Temp Switch 01 |
| Temperature Range 110°C±5 |
| Switching Normally Close |
| High Accuracy |
| Construction & mining application |
| Material Brass |
| Thread mounted |
| Easy to install |
| Country of Origin: Make In India |
| Supply | N.A |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Close |
| Threading | 1/2" NPT |
| Operating Temperature Range | 90 to 100 °C |
| Reset Temperature | 90 to 100 °C |
| Connector | 210 MSSL Series |
| Material | Brass |
| Current Rating | 10Amp |
Key Features :
| Part No: Rev Temp Switch 02 |
| Temperature Range 110°C±5 |
| Switching Normally Open |
| High Accuracy |
| Construction & mining application |
| Material Brass |
| Thread mounted |
| Easy to install |
| Country of Origin: Make In India |
| Supply | N.A |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Open |
| Threading | 1/2" NPT |
| Operating Temperature Range | 105 to 115 °C |
| Reset Temperature | 90 to 100 °C |
| Material | Brass |
| Current Rating | 10 Amp |
Key Features :
| Part No: Rev Temp Switch 03 |
| Temperature Range 85°C±5 |
| Switching Normally Open |
| High Accuracy |
| Construction & mining application |
| Material Brass |
| Thread mounted |
| Easy to install |
| Country of Origin: Make In India |
| Supply | N.A |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Open |
| Threading | 1/2" NPT |
| Operating Temperature Range | 80 to 90 °C |
| Reset Temperature | 65 to 75 °C |
| Connector | 210 MSSL Series |
| Material | Brass |
| Current Rating | 10 Amp |
Key Features :

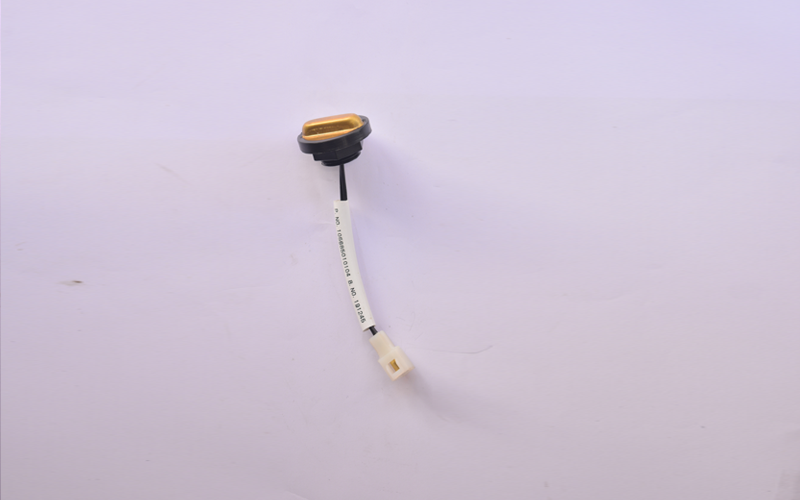

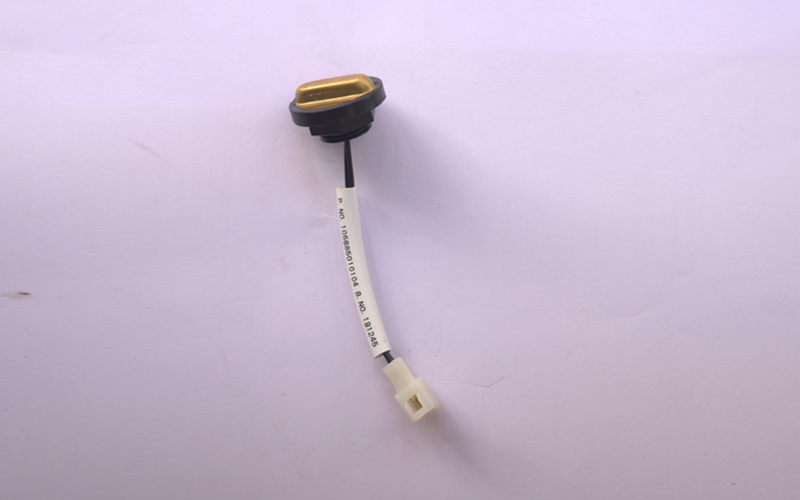

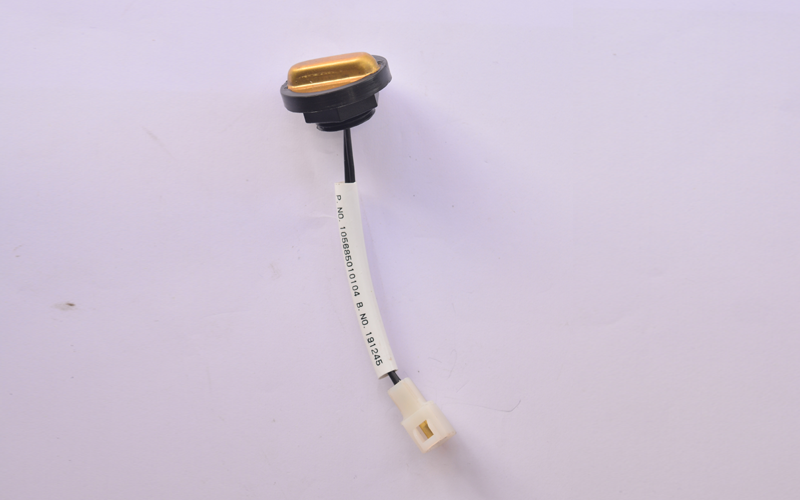

| Part No: Genset Canopy temp switch |
| Temperature Range 50 to 60 |
| Switching Normally Open / Close |
| High Accuracy |
| Diesel engine application |
| Material Brass |
| Canopy mount |
| Easy to install |
| Country of Origin: Make In India |
| Supply | N.A |
| Sensing type | Bimetalic Switch |
| Switching type | Normally Open / Close |
| Threading | 1/2" NPT |
| Operating Temperature Range | 50 to 60 °C |
| Reset Temperature | 35 to 45 °C |
| Connector | 310 MSSL Series |
| Material | Brass front Canopy mounting |
| Enclosure | Nylon 6 |
| Current Rating | 10Amp |
Temperature switches are widely used in heating, ventilation, and air conditioning (HVAC) systems to monitor and control the temperature of air or fluids within the system.
In industrial settings, temperature switches are used to monitor and control temperature in various processes such as manufacturing, food processing, and chemical processing.
In agricultural applications, temperature switches are used in greenhouse climate control systems to regulate temperature and ensure optimal growing conditions for plants.
Temperature switches are employed in environmental monitoring systems to track temperature variations in facilities such as greenhouses, warehouses, and data centers.
Temperature switches are often integrated into safety systems to monitor temperature in critical environments such as electrical panels, transformers, and motor windings.
