Types of 5/8-18 UNF Magnetic Speed Sensor

Twintech Part No. : TCUMPU1404
Threading : 5/8 " 18UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU3272
Threading : 5/8 " 18UNF
Threading Lenght : 80.0mm
Probe Connector : Same as expect to Matting Millatry style Connector
Cable Length : N.A
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5360
Threading : 5/8 " 18UNF
Threading Lenght : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4838
Threading : 5/8 " 18UNF
Threading Lenght : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4572
Threading : 5/8 " 18UNF
Threading Lenght : 83.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 300 to 1.5K Ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5824
Threading : 5/8 " 18UNF
Threading Lenght : 80.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5447
Threading : 5/8 " 18UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4573
Threading : 5/8 " 18UNF
Threading Lenght : 127.0mm
Probe Connector : Teflon wires leads + Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU1360
Threading : 5/8 " 18UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 3300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUHRN3273
Threading : 5/8 " 18UNF
Threading Lenght : N.A
Probe Connector : Moulded Harness with 2 way Male Pins
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : N.A

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU2915
Threading : 5/8 " 18UNF
Threading Lenght : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0793
Threading : 5/8 " 18UNF
Threading Lenght : 35.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU2414
Threading : 5/8 " 18UNF
Threading Lenght : 50.0mm
Probe Connector : 4 Core Wires Leads + 3 way Power lock connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0796
Threading : 5/8 " 18UNF
Threading Lenght : 51.0mm
Probe Connector : Wires Leads + 3 way Power lock Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0799
Threading : 5/8 " 18UNF
Threading Lenght : 55.0mm
Probe Connector : Wires Leads + 2 way TT Make Connector
Cable Length : 135.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU0001
Threading : 5/8 " 18UNF
Threading Lenght : 50.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TGRMPU2754
Threading : 5/8 " 18UNF
Threading Lenght : 50.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 3.5 Meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

3/4 " 16UNF Threads Magnetic pickups types

Twintech Part No. : TCUMPU7092
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector M+F
Cable Length : 2 meters
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 800 to 1.6K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU5417
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : 2 Pin bush Female inbuilt + Male Harness
Cable Length : 300mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4141
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Teflon wires leads + 3 way powerlock Connector
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU2304
Threading : 3/4 " 16UNF
Threading Lenght : 76.0mm
Probe Connector : Millatry style Connector 4 Way M+F
Cable Length : 300 mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU4010
Threading : 3/4 " 16UNF
Threading Lenght : 114.0mm
Probe Connector : Wires Leads
Cable Length : 300.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU9524
Threading : 3/4 " 16UNF
Threading Lenght : 83.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU9525
Threading : 3/4 " 16UNF
Threading Lenght : 127.0mm
Probe Connector : Wires Leads + 2 Pole Packard Connector
Cable Length : 205.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Twintech Part No. : TCUMPU3007
Threading : 3/4 " 16UNF
Threading Lenght : 45.0mm
Probe Connector : 2 Core Shielded + 3 way power lock connector
Cable Length : 200.0mm
Operating Temperature : -40 ºC to +106 ºC
Coil Resistance : 1.0K to 1.5K ohms

Send Request MOQ : 30 nos

Digital Hourmeter

Twintech Part No. : TDHM3700
Supply : 9-60 V. DC
Input : 12-24 V. DC
Display : LCD Display 6 digits with Backelight
IP : 65
Operating Temperature : -30 to 80 °C
Cut-out Size in mm : 52.0mm Diameter

Send Request MOQ : 30 nos

Types of Digital RPM Indicator

Digital RPM Indicator LCD Display

Twintech Part No. :
Twintech Part Name : Digital RPM Indicator LCD Display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set @ 118 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Size in mm : 96 X 96 X 50
Cut out : 92 X 92

Send Request MOQ : 06 nos

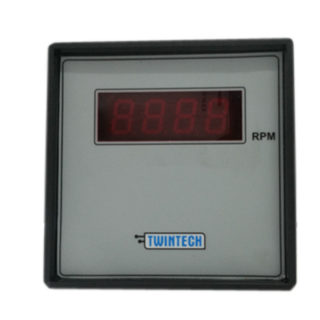

Digital RPM Indicator RED LED Seven Segment Display

Twintech Part No. :
Twintech Part Name : Digital RPM Indicator RED LED Seven Segment Display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment
Range : 0 to 9999 RPM
Output : N.A
Teeth Gear Calibration : Factory Set @ 142 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : N.A
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A
Size in mm : 96 X 96 X 65
Cut out : 92 X 92

Send Request MOQ : 06 nos

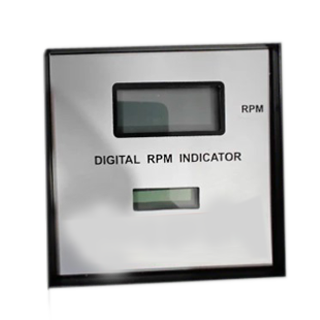

Digital RPM Hour Indicator Led Seven segment display

Twintech Part No. :
Twintech Part Name : Digital RPM Hour Indicator Led Seven segment display
Supply : 12-32 VDC
Input : Magnetic pickup / Hall effect / Proximity
Display : RED Led 4 Digits Seven Segment + 6 Digits LCD Display
Range : 0 to 9999 RPM & 0 to 99999 Hrs
Output : N.A
Teeth Gear Calibration : Factory Set @ 142 TG / Customized

Connection : 4 Screw Terminals on Back side
Hours : Seperate Display for Hours
Mounting Clamp : C Clamp
Overspeed / Relay Output : N.A

Size in mm : 96 X 96 X 65
Cut out : 92 X 92

Send Request MOQ : 06 nos
